B65859A0000R057
B65859A0000R057
- In Stock: 0
- Manufacturer: EPCOS - TDK Electronics
- Part Number: B65859A0000R057

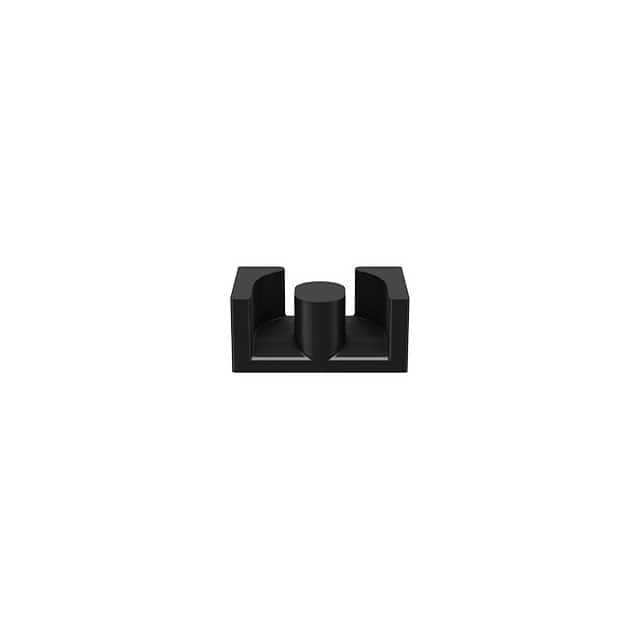

- Detailed Description: FERRITE CORE EPX 2UH T57 2PCS
- Category: 磁性元件 - 变压器，电感器元件 | 铁氧体磁芯
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.8605
10+
$0.8089
100+
$0.7659
1000+
$0.7228
10000+
$0.6798
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | EPCOS - TDK Electronics |
|---|---|
| 系列 | EPX10 |
| 包装 | 盒 |
| 标准包装 | 2000 |
| 产品状态 | 在售 |
| 磁心类型 | EPX |
| 供应商器件封装 | EPX 10 |
| 材料 | T57 |
| 直径 | - |
| 电感因数 (Al) | 2 µH |
| 容差 | -20%，+30% |
| 间隙 | 无缺口 |
| 有效磁导率 (µe) | 2170 |
| 初始磁导率 (µi) | 4000 |
| 磁心因数 (ΣI/A) mm1 | 1.37 |
| 有效长度 (le) mm | 21.7 |
| 有效面积 (Ae) mm² | 15.9 |
| 最小磁心横截面 (Amin) mm² | 13.2 |
| 有效磁体体积 (Ve) mm³ | 345 |
| 表面 | 无涂层 |
| 高度 | 0.205"（5.20mm） |
| 长度 | 0.465"（11.80mm） |
| 宽度 | 0.309"（7.85mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.90.9630 |
