B66350G0000X187
B66350G0000X187
- In Stock: 0
- Manufacturer: EPCOS - TDK Electronics
- Part Number: B66350G0000X187

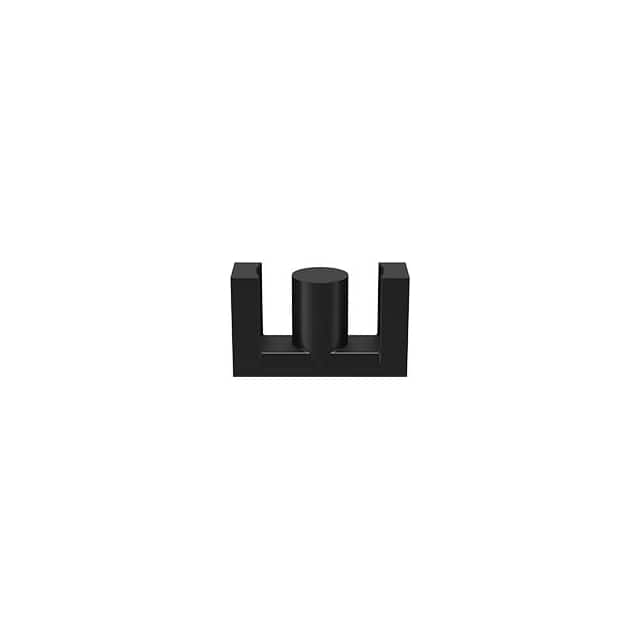

- Detailed Description: FERRITE CORE ER N87 1PC
- Category: 磁性元件 - 变压器，电感器元件 | 铁氧体磁芯
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | EPCOS - TDK Electronics |
|---|---|
| 系列 | B66350 |
| 包装 | 盒 |
| 标准包装 | 300 |
| 产品状态 | 在售 |
| 磁心类型 | ER |
| 供应商器件封装 | ER 35 x 20 x 11 |
| 材料 | N87 |
| 直径 | - |
| 容差 | -20%，+30% |
| 间隙 | 无缺口 |
| 有效磁导率 (µe) | 1735 |
| 磁心因数 (ΣI/A) mm1 | 0.81 |
| 有效长度 (le) mm | 89.6 |
| 有效面积 (Ae) mm² | 111 |
| 最小磁心横截面 (Amin) mm² | 101 |
| 有效磁体体积 (Ve) mm³ | 9950 |
| 表面 | 无涂层 |
| 高度 | 0.815"（20.70mm） |
| 长度 | 1.378"（35.00mm） |
| 宽度 | 0.445"（11.30mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.90.9630 |
