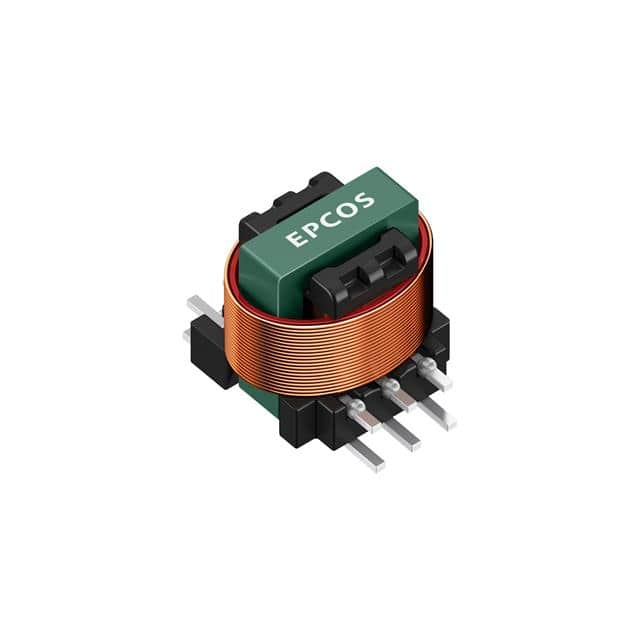

B78302A2403A003

B78302A2403A003

B78302A2403A003

  • In Stock: 0
  • Manufacturer: EPCOS - TDK Electronics
  • Part Number: B78302A2403A003
  • Detailed Description: 用于 SMPS 变压器 隔离 50kHz 表面贴装型
  • Category: 变压器 | 开关转换器,SMPS 变压器
  • RoHS Status: 符合 ROHS3 规范
  • Datasheet: Datasheet

Product Specifications

Manufacturer EPCOS - TDK Electronics
系列 B78302
包装 卷带(TR) | 剪切带(CT)
标准包装 1000
产品状态 在售
类型 -
应用 -
计划所用芯片组 -
芯片组制造商 -
电压 - 初级 -
电压 - 辅助 -
电压 - 隔离 -
不同频率时电感 4mH @ 50kHz
频率 50kHz
工作温度 -40°C ~ 125°C
安装类型 表面贴装型
大小 / 尺寸 0.307 长 x 0.264 宽(7.80mm x 6.70mm)
高度 - 安装(最大值) 0.264(6.70mm)
封装 0.346 长 x 0.264 宽(8.80mm x 6.70mm)
样式 绕线

Environmental & Export

RoHS Status 符合 ROHS3 规范
Moisture Sensitivity Level (MSL)
REACH Status
ECCN
HTSUS

How to Buy

Process Submit enquiry>Confirm offer>Send order>Complete payment >Delivery
Payment TT, PayPal, Escrow, more please consult our account manager.
Delivery period For in-stock parts, orders are estimated to ship out in 3 days.
Shipping option We provide DHL, FedEx, UPS for international transportation.
Shipping tracking Orders are shipped and we will notify you of the tracking number by email.
Warranty Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months.
This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation
