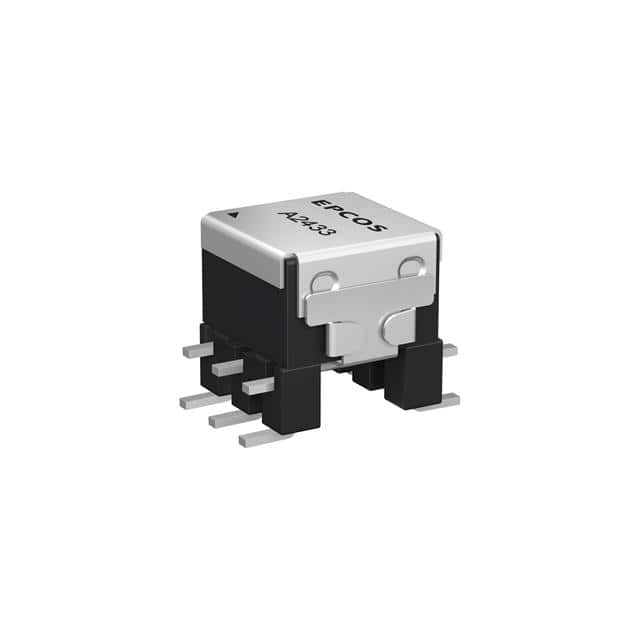

B78416A2386A003
B78416A2386A003
- In Stock: 0
- Manufacturer: EPCOS - TDK Electronics
- Part Number: B78416A2386A003
- Detailed Description: EP6 SMD TRANSFORMER
- Category: 变压器 | 脉冲变压器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$6.1560
10+
$5.7866
100+
$5.4788
1000+
$5.1710
10000+
$4.8632
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | EPCOS - TDK Electronics |
|---|---|
| 系列 | B7416A |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 变压器类型 | - |
| 电感 | 230µH |
| ET（伏特-时间） | - |
| 匝数比 - 初级:次级 | 1:1:9 |
| 安装类型 | 表面贴装型 |
| 大小 / 尺寸 | 0.260 长 x 0.260 宽（6.60mm x 6.60mm） |
| 高度 - 安装（最大值） | 0.280（7.10mm） |
| 工作温度 | -40°C ~ 85°C |
| 重量 | - |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
