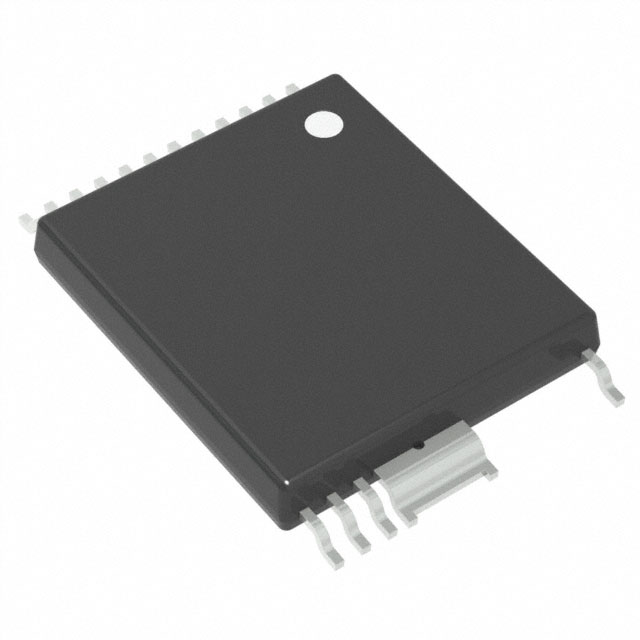

BRD1261C-TL
BRD1261C-TL
- Available: 10000
- Manufacturer: Power Integrations
- Part Number: BRD1261C-TL
- Detailed Description: BRIDGESWITCH 1.7 A
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.2080
10+
$2.0755
100+
$1.9651
1000+
$1.8547
10000+
$1.7443
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Power Integrations |
|---|---|
| 系列 | BridgeSwitch |
| 包装 | - |
| 标准包装 | 2000 |
| 产品状态 | 在售 |
| 输出配置 | 半桥 |
| 应用 | DC 电机，通用 |
| 接口 | 模拟，逻辑，PWM |
| 负载类型 | 容性和阻性 |
| 技术 | - |
| 导通电阻（典型值） | 2.95 欧姆 LS，2.95 欧姆 HS |
| 电流 - 输出/通道 | 1.7A |
| 电流 - 峰值输出 | - |
| 电压 - 供电 | 50V |
| 电压 - 负载 | - |
| 工作温度 | -40°C ~ 150°C（TJ） |
| 特性 | 自举电路 |
| 故障保护 | 限流，超温，过压 |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 24-PowerSMD 模块（0.425"，10.80mm 宽）17 引线 |
| 供应商器件封装 | InSOP-24C |
| 基本产品编号 | BRD1261 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
