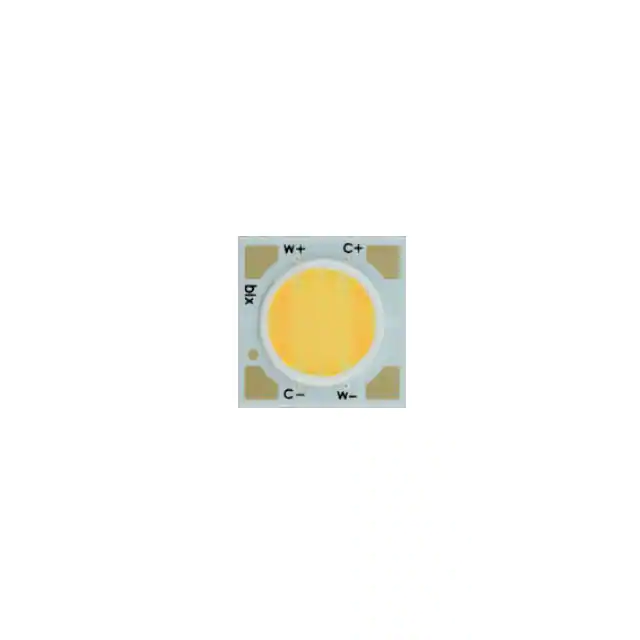

BXRV-TR-2765S-10A0-B-23-S2
BXRV-TR-2765S-10A0-B-23-S2
- In Stock: 0
- Manufacturer: Bridgelux
- Part Number: BXRV-TR-2765S-10A0-B-23-S2
- Detailed Description: TW LED ARRAY, LES=9MM, VF=36V, I
- Category: 光电器件 | COB，引擎，模块，灯条
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$15.6720
10+
$14.7317
100+
$13.9481
1000+
$13.1645
10000+
$12.3809
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Bridgelux |
|---|---|
| 系列 | Vesta™ Tunable White Gen 2 |
| 包装 | - |
| 标准包装 | 100 |
| 产品状态 | 在售 |
| 类型 | 板上芯片（COB） |
| 颜色 | 白色，暖色 / 白色，冷色 |
| CCT (K) | 2700K 3 阶麦克亚当椭圆，6500K 3 阶麦克亚当椭圆 |
| 波长 | - |
| 配置 | 方形 |
| 不同电流/温度下的光通量 | 757lm 暖白，910lm 冷白 |
| 电流 - 测试 | 250mA |
| 温度 - 测试 | 25°C |
| 电压 - 正向 (Vf)（典型值） | 34.8V 暖白，34.8V 冷白 |
| 流明/瓦，不同电流 - 测试时 | 97 lm/W 暖白，116 lm/W 冷白 |
| 电流 - 最大值 | 480mA |
| CRI（显色指数） | 95 |
| 视角 | 130° |
| 特性 | - |
| 大小 / 尺寸 | 15.90mm 长 x 15.90mm 宽 |
| 高度 | 1.65mm |
| 发光面 (LES) | 10.00mm 直径 |
| 透镜类型 | 扁平 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
