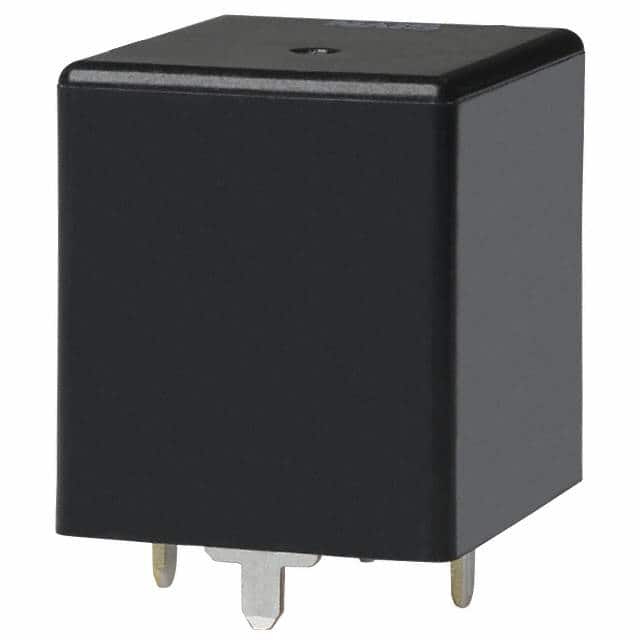

CB1AHF-P-12V
CB1AHF-P-12V
- Available: 50
- Manufacturer: Panasonic Electric Works
- Part Number: CB1AHF-P-12V
- Detailed Description: RELAY AUTOMOTIVE SPST 70A 12V
- Category: 继电器 | 汽车继电器
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.4880
10+
$7.0387
100+
$6.6643
1000+
$6.2899
10000+
$5.9155
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Panasonic Electric Works |
|---|---|
| 系列 | CB |
| 包装 | 散装 |
| 标准包装 | 50 |
| 产品状态 | 在售 |
| 线圈类型 | 无锁存 |
| 线圈电流 | 117 mA |
| 线圈电压 | 12VDC |
| 触头外形 | SPST-NO（1 Form A） |
| 额定接触（电流） | 70 A |
| 开关电压 | 14VDC -标称 |
| 必须吸合电压 | 7 VDC |
| 必须释放电压 | 1.2 VDC |
| 工作时间 | 15 ms |
| 释放时间 | 15 ms |
| 特性 | 密封式 - 焊剂防护 |
| 安装类型 | 通孔 |
| 端接样式 | PC 引脚 |
| 工作温度 | -40°C ~ 85°C |
| 触头材料 | 银合金，无镉 |
| 线圈功率 | 1.4W |
| 线圈电阻 | 103 Ohms |
| 基本产品编号 | CB1AH |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8536.41.0050 |
