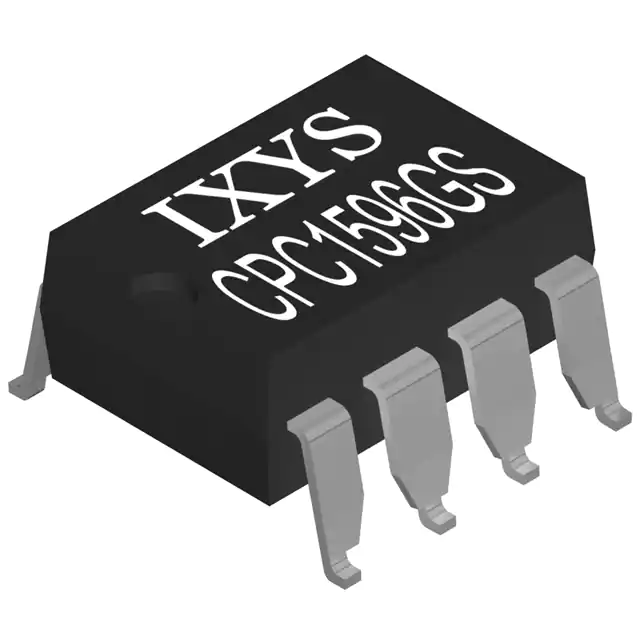

CPC1596GSTR
CPC1596GSTR
- Available: 1000
- Manufacturer: IXYS Integrated Circuits Division
- Part Number: CPC1596GSTR
- Detailed Description: GATE DRIVER OPTICAL 570V 8L SMD
- Category: 隔离器 | 隔离器 - 栅极驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.8280
10+
$3.5983
100+
$3.4069
1000+
$3.2155
10000+
$3.0241
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | IXYS Integrated Circuits Division |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 技术 | 光学耦合 |
| 通道数 | 1 |
| 电压 - 隔离 | 3750Vrms |
| 共模瞬变抗扰度（最小值） | - |
| 传播延迟 tpLH / tpHL（最大值） | - |
| 脉宽失真（最大） | - |
| 上升/下降时间（典型值） | - |
| 电流 - 输出高、低 | 1A，1A |
| 电流 - 峰值输出 | 1A |
| 电压 - 正向 (Vf)（典型值） | 1.4V |
| 电流 - DC 正向 (If)（最大值） | 10 mA |
| 电压 - 输出供电 | 15V ~ 570V |
| 工作温度 | -40°C ~ 110°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 8-SMD，鸥翼 |
| 供应商器件封装 | 8-SMD |
| 认证机构 | CSA，UL |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
