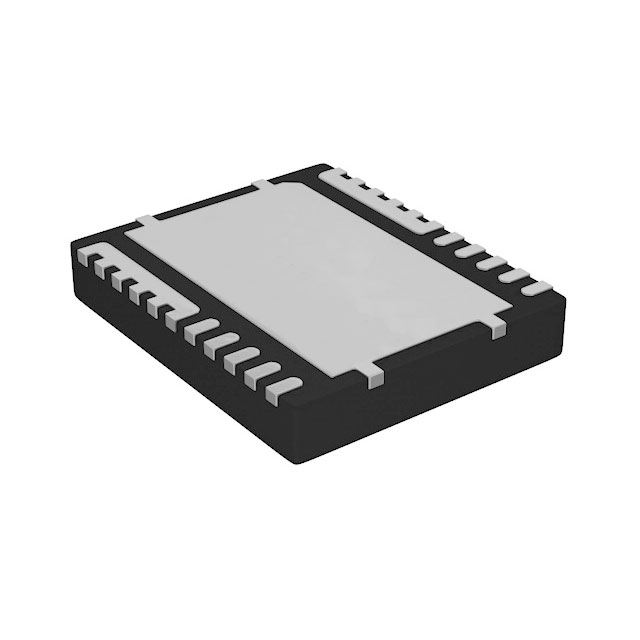

CSD95378BQ5MCT
CSD95378BQ5MCT
- Available: 1000
- Manufacturer: Texas Instruments
- Part Number: CSD95378BQ5MCT
- Detailed Description: IC SYNC BUCK NEXFET 12SON
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$7.9560
10+
$7.4786
100+
$7.0808
1000+
$6.6830
10000+
$6.2852
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| 系列 | NexFET™ |
| 包装 | - |
| 标准包装 | 250 |
| 产品状态 | 在售 |
| 输出配置 | 半桥 |
| 应用 | 同步降压转换器 |
| 接口 | PWM |
| 负载类型 | 电感 |
| 技术 | 功率 MOSFET |
| 导通电阻（典型值） | - |
| 电流 - 输出/通道 | 60A |
| 电流 - 峰值输出 | 90A |
| 电压 - 供电 | 4.5V ~ 5.5V |
| 电压 - 负载 | 4.5V ~ 16V |
| 工作温度 | -55°C ~ 150°C（TJ） |
| 特性 | 自举电路，状态标志 |
| 故障保护 | 限流，超温，击穿，短路，UVLO |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 12-PowerTFDFN |
| 供应商器件封装 | 12-VSON（5x6） |
| 基本产品编号 | CSD95378BQ5 |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 2（1 年） |
| REACH Status | REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
