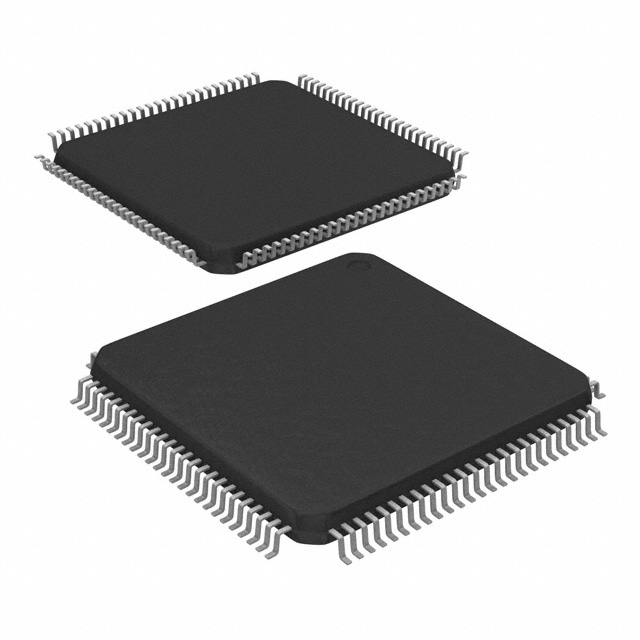

CY9BF314NPMC-G-JNE2
CY9BF314NPMC-G-JNE2
- In Stock: 0
- Manufacturer: Infineon Technologies
- Part Number: CY9BF314NPMC-G-JNE2
- Detailed Description: IC MCU 32BIT 288KB FLASH 100LQFP
- Category: 集成电路（IC） | 嵌入式 - 微控制器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$11.1930
10+
$10.5214
100+
$9.9618
1000+
$9.4021
10000+
$8.8425
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Infineon Technologies |
|---|---|
| 系列 | FM3 MB9B310R |
| 包装 | 托盘 |
| 标准包装 | 900 |
| 产品状态 | 在售 |
| 核心处理器 | ARM® Cortex®-M3 |
| 内核规格 | 32 位单核 |
| 速度 | 144MHz |
| 连接能力 | CSIO，EBI/EMI，I²C，LINbus，UART/USART，USB |
| 外设 | DMA，LVD，POR，PWM，WDT |
| I/O 数 | 83 |
| 程序存储容量 | 288KB（288K x 8） |
| 程序存储器类型 | 闪存 |
| EEPROM 容量 | - |
| RAM 大小 | 32K x 8 |
| 电压 - 供电 (Vcc/Vdd) | 2.7V ~ 5.5V |
| 数据转换器 | A/D 16x12b |
| 振荡器类型 | 内部 |
| 工作温度 | -40°C ~ 85°C（TA） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 100-LQFP |
| 供应商器件封装 | 100-LQFP（14x14） |
| 基本产品编号 | CY9BF314 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
