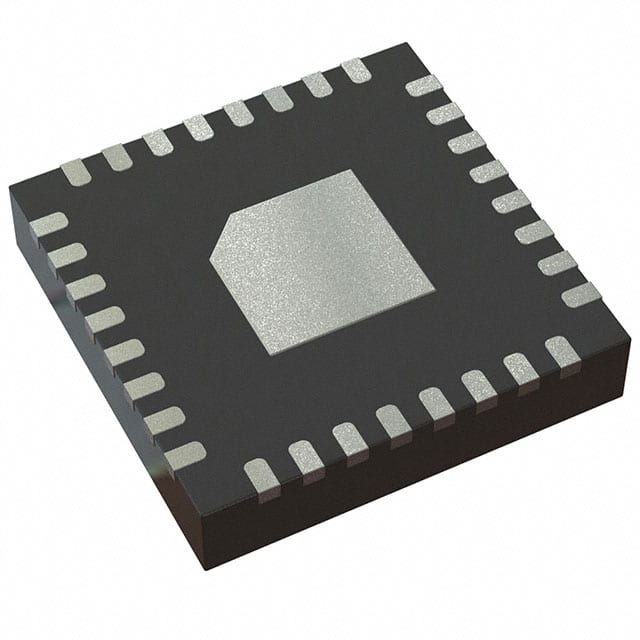

DRV8106SQRHBRQ1
DRV8106SQRHBRQ1
- In Stock: 0
- Manufacturer: Texas Instruments
- Part Number: DRV8106SQRHBRQ1
- Detailed Description: 半桥 驱动器 直流电机，继电器，螺线管 功率 MOSFET 32-VQFN（5x5）
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 不适用
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.4800
10+
$3.2712
100+
$3.0972
1000+
$2.9232
10000+
$2.7492
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 输出配置 | 半桥 |
| 应用 | 直流电机，继电器，螺线管 |
| 接口 | 逻辑，PWM，SPI |
| 负载类型 | 电感，电容性，电阻 |
| 技术 | 功率 MOSFET |
| 导通电阻（典型值） | 4 毫欧 |
| 电流 - 输出/通道 | 5mA |
| 电流 - 峰值输出 | 62mA |
| 电压 - 供电 | 3V ~ 5.5V |
| 电压 - 负载 | 3V ~ 5.5V |
| 工作温度 | -40°C ~ 125°C |
| 特性 | 充电泵，压摆率受控型 |
| 故障保护 | 过流，过压，击穿 |
| 安装类型 | 表面贴装，可润湿侧翼 |
| 封装/外壳 | 32-VFQFN 裸露焊盘 |
| 供应商器件封装 | 32-VQFN（5x5） |
| 基本产品编号 | DRV8106 |
Environmental & Export
| RoHS Status | 不适用 |
|---|---|
| Moisture Sensitivity Level (MSL) | 2（1 年） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
