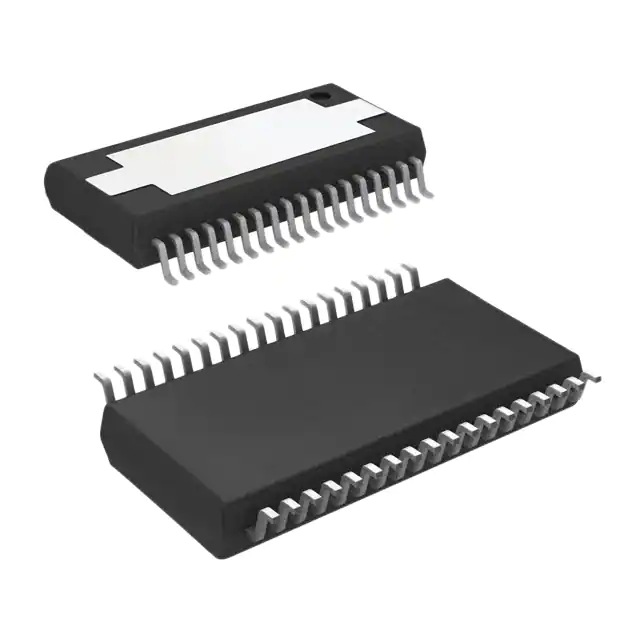

DRV8432DKD
DRV8432DKD
- Available: 1000
- Manufacturer: Texas Instruments
- Part Number: DRV8432DKD
- Detailed Description: 半桥（4） 驱动器 DC 电机，步进电机 功率 MOSFET 36-HSSOP
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$20.8320
10+
$19.5821
100+
$18.5405
1000+
$17.4989
10000+
$16.4573
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 29 |
| 产品状态 | 在售 |
| 输出配置 | 半桥（4） |
| 应用 | DC 电机，步进电机 |
| 接口 | PWM |
| 负载类型 | 电感 |
| 技术 | 功率 MOSFET |
| 导通电阻（典型值） | 110 毫欧 LS，110 毫欧 HS |
| 电流 - 输出/通道 | 7A |
| 电流 - 峰值输出 | 12A |
| 电压 - 供电 | 10.8V ~ 13.2V |
| 电压 - 负载 | 0V ~ 52.5V |
| 工作温度 | -40°C ~ 150°C（TJ） |
| 特性 | 状态标志 |
| 故障保护 | 限流，超温，短路，UVLO |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 36-BSSOP（0.433"，11.00mm 宽）裸露焊盘 |
| 供应商器件封装 | 36-HSSOP |
| 基本产品编号 | DRV8432 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 4（72 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
