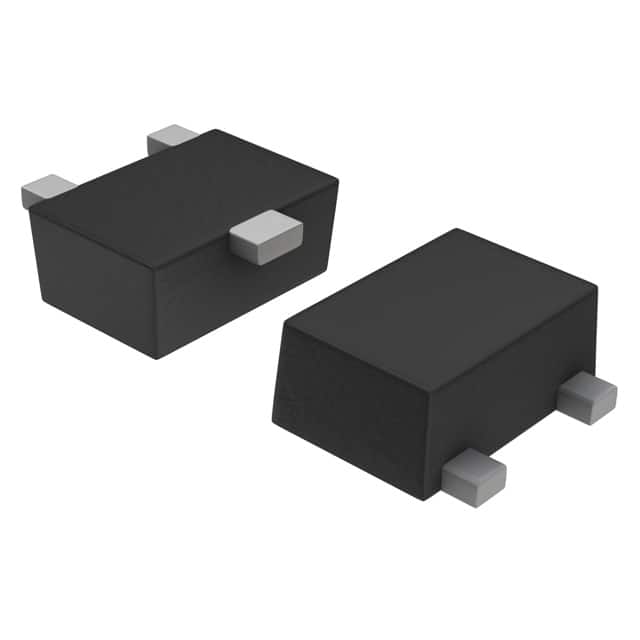

DTC143ZM3T5G
DTC143ZM3T5G
- In Stock: 0
- Manufacturer: onsemi
- Part Number: DTC143ZM3T5G
- Detailed Description: 晶体管 - 双极 (BJT) - 单，预偏置) NPN - 预偏压 50 V 100 mA 260 mW 表面贴装型 SOT-723
- Category: 分立半导体产品 | 晶体管 - 双极（BJT） - 单，预偏置双极晶体管
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.4440
10+
$0.4174
100+
$0.3952
1000+
$0.3730
10000+
$0.3508
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 8000 |
| 产品状态 | 在售 |
| 晶体管类型 | NPN - 预偏压 |
| 电流 - 集电极 (Ic)（最大值） | 100 mA |
| 电压 - 集射极击穿（最大值） | 50 V |
| 电阻器 - 基极 (R1) | 4.7 kOhms |
| 电阻器 - 发射极 (R2) | 47 kOhms |
| 不同 Ic、Vce 时 DC 电流增益 (hFE)（最小值） | 80 @ 5mA，10V |
| 不同 Ib、Ic 时 Vce 饱和压降（最大值） | 250mV @ 1mA，10mA |
| 电流 - 集电极截止（最大值） | 500nA |
| 功率 - 最大值 | 260 mW |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | SOT-723 |
| 供应商器件封装 | SOT-723 |
| 基本产品编号 | DTC143 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
