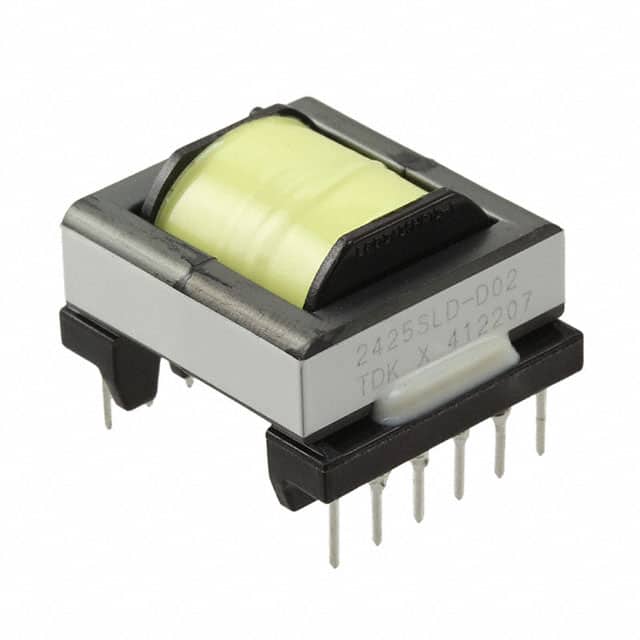

ECO2425SLD-D02H0111
ECO2425SLD-D02H0111
- In Stock: 0
- Manufacturer: TDK Corporation
- Part Number: ECO2425SLD-D02H0111
- Detailed Description: INDUCTOR/XFRMR
- Category: 变压器 | 开关转换器，SMPS 变压器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.3376
10+
$5.0173
100+
$4.7505
1000+
$4.4836
10000+
$4.2167
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TDK Corporation |
|---|---|
| 系列 | ECO |
| 包装 | 散装 |
| 标准包装 | 192 |
| 产品状态 | 在售 |
| 类型 | 用于 AC/DC 转换器 |
| 应用 | 回扫转换器 |
| 计划所用芯片组 | - |
| 芯片组制造商 | - |
| 电压 - 初级 | 85 ~ 276V |
| 电压 - 辅助 | 5V @ 2.2A，12V @ 200mA |
| 电压 - 隔离 | 3000Vrms |
| 不同频率时电感 | 446µH @ 10kHz |
| 频率 | 67kHz |
| 工作温度 | -30°C ~ 120°C |
| 安装类型 | 通孔 |
| 大小 / 尺寸 | 1.024" 长 x 1.181" 宽（26.00mm x 30.00mm） |
| 高度 - 安装（最大值） | 0.787"（20.00mm） |
| 封装 | 1.024" 长 x 1.181" 宽（26.00mm x 30.00mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
