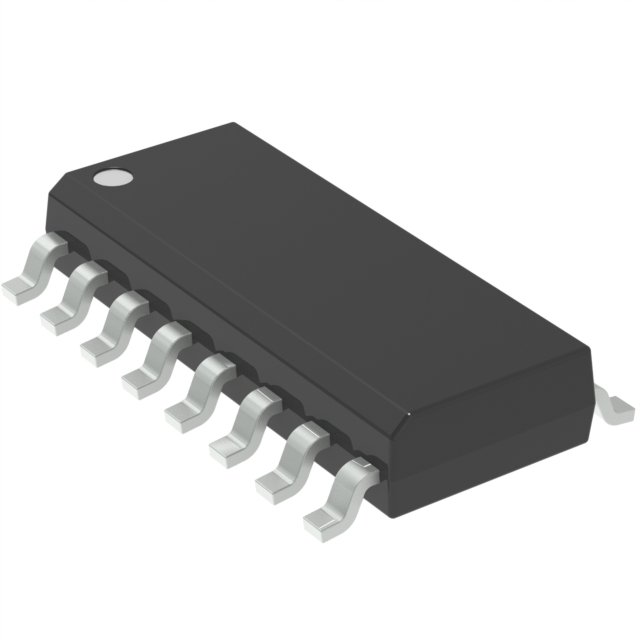

FAD6263M1X
FAD6263M1X
- In Stock: 1000
- Manufacturer: onsemi
- Part Number: FAD6263M1X
- Detailed Description: 半桥（2） 驱动器 DC 电机，通用 功率 MOSFET 16-SOIC
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.3960
10+
$3.1922
100+
$3.0224
1000+
$2.8526
10000+
$2.6828
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | Automotive, AEC-Q100 |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 2500 |
| 产品状态 | 在售 |
| 输出配置 | 半桥（2） |
| 应用 | DC 电机，通用 |
| 接口 | 逻辑 |
| 负载类型 | 容性和阻性 |
| 技术 | 功率 MOSFET |
| 导通电阻（典型值） | - |
| 电流 - 输出/通道 | 3A |
| 电流 - 峰值输出 | 3.3A |
| 电压 - 供电 | 10V ~ 22V |
| 电压 - 负载 | 10V ~ 22V |
| 工作温度 | -40°C ~ 150°C（TJ） |
| 特性 | 自举电路 |
| 故障保护 | 击穿，UVLO |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 16-SOIC（0.154"，3.90mm 宽） |
| 供应商器件封装 | 16-SOIC |
| 基本产品编号 | FAD6263 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
