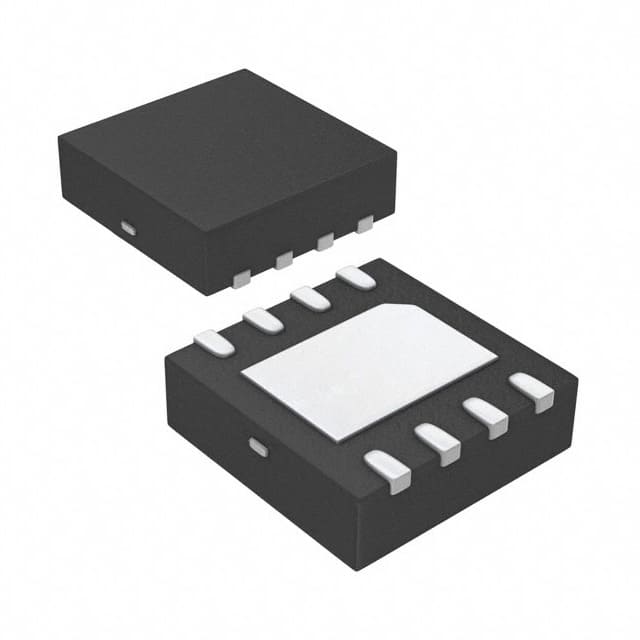

FAN3223TMPX
FAN3223TMPX
- In Stock: 0
- Manufacturer: onsemi
- Part Number: FAN3223TMPX
- Detailed Description: IC GATE DRVR LOW-SIDE 8MLP
- Category: 集成电路（IC） | 电源管理（PMIC） - 栅极驱动器
- RoHS Status： 符合 ROHS3 规范
Reference Price (USD)
1+
$1.8480
10+
$1.7371
100+
$1.6447
1000+
$1.5523
10000+
$1.4599
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 驱动配置 | 低端 |
| 通道类型 | 独立式 |
| 驱动器数 | 2 |
| 栅极类型 | N 沟道 MOSFET |
| 电压 - 供电 | 4.5V ~ 18V |
| 逻辑电压 - VIL，VIH | 0.8V，2V |
| 电流 - 峰值输出（灌入，拉出） | 5A，5A |
| 输入类型 | 反相 |
| 上升/下降时间（典型值） | 12ns，9ns |
| 工作温度 | -40°C ~ 125°C（TA） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 8-WDFN 裸露焊盘 |
| 供应商器件封装 | 8-MLP（3x3） |
| 基本产品编号 | FAN3223 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
