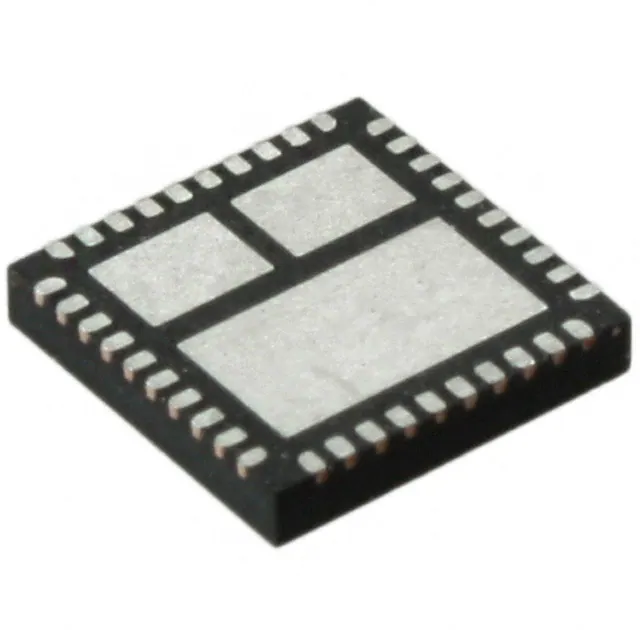

FDMF6824A
FDMF6824A
- Available: 1000
- Manufacturer: onsemi
- Part Number: FDMF6824A
- Detailed Description: MOD DRMOS HIGH PERF 40QFN
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 输出配置 | 半桥 |
| 应用 | 同步降压转换器 |
| 接口 | PWM |
| 负载类型 | 电感 |
| 技术 | DrMOS |
| 导通电阻（典型值） | 1 欧姆 LS，1 欧姆 HS |
| 电流 - 输出/通道 | 60A |
| 电流 - 峰值输出 | - |
| 电压 - 供电 | 4.5V ~ 5.5V |
| 电压 - 负载 | 3V ~ 16V |
| 工作温度 | -40°C ~ 150°C（TJ） |
| 特性 | 自举电路，状态标志 |
| 故障保护 | 超温，击穿，UVLO |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 40-PowerTFQFN |
| 供应商器件封装 | 40-PQFN（6x6） |
| 基本产品编号 | FDMF6824 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
