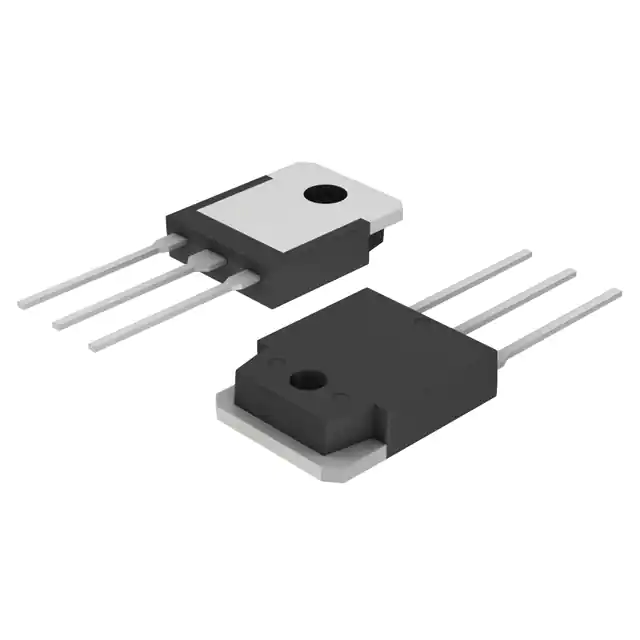

FGA40N65SMD
FGA40N65SMD
- Available: 10000
- Manufacturer: onsemi
- Part Number: FGA40N65SMD
- Detailed Description: IGBT 场截止 650 V 80 A 349 W 通孔 TO-3PN
- Category: 分立半导体产品 | 晶体管 - IGBT - 单 IGBT
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.8200
10+
$5.4708
100+
$5.1798
1000+
$4.8888
10000+
$4.5978
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 30 |
| 产品状态 | 在售 |
| IGBT 类型 | 场截止 |
| 电压 - 集射极击穿（最大值） | 650 V |
| 电流 - 集电极 (Ic)（最大值） | 80 A |
| 电流 - 集电极脉冲 (Icm) | 120 A |
| 不同 Vge、Ic 时 Vce(on)（最大值） | 2.5V @ 15V，40A |
| 功率 - 最大值 | 349 W |
| 开关能量 | 820µJ（开），260µJ（关） |
| 输入类型 | 标准 |
| 栅极电荷 | 119 nC |
| 25°C 时 Td（开/关）值 | 12ns/92ns |
| 测试条件 | 400V，40A，6 欧姆，15V |
| 反向恢复时间 (trr) | 42 ns |
| 工作温度 | -55°C ~ 175°C（TJ） |
| 安装类型 | 通孔 |
| 封装/外壳 | TO-3P-3，SC-65-3 |
| 供应商器件封装 | TO-3PN |
| 基本产品编号 | FGA40N65 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
