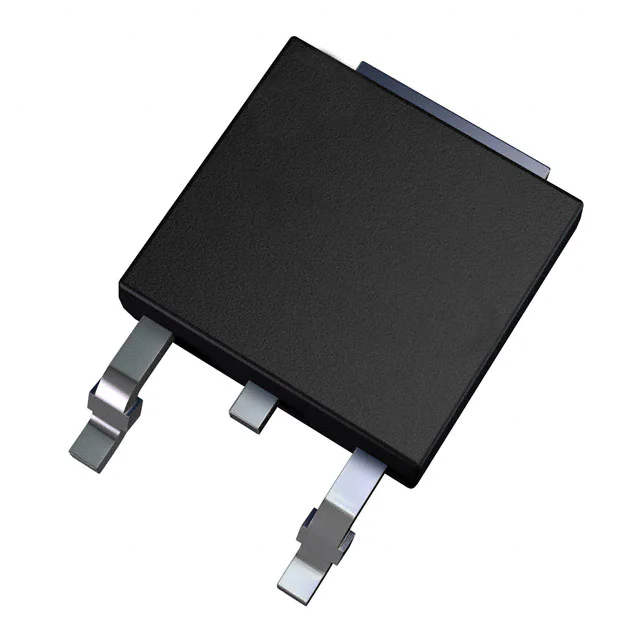

FGD2736G3-F085
FGD2736G3-F085
- Available: 1000
- Manufacturer: onsemi
- Part Number: FGD2736G3-F085
- Detailed Description: ECOSPARK3 IGN-IGBT TO252
- Category: 分立半导体产品 | 晶体管 - IGBT - 单 IGBT
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.0760
10+
$1.9514
100+
$1.8476
1000+
$1.7438
10000+
$1.6400
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | EcoSPARK® |
| 包装 | - |
| 标准包装 | 2500 |
| 产品状态 | 在售 |
| IGBT 类型 | - |
| 电压 - 集射极击穿（最大值） | 360 V |
| 电流 - 集电极 (Ic)（最大值） | 21 A |
| 不同 Vge、Ic 时 Vce(on)（最大值） | 1.65V @ 4.5V，10A |
| 功率 - 最大值 | 150 W |
| 开关能量 | - |
| 输入类型 | 逻辑 |
| 栅极电荷 | 18 nC |
| 25°C 时 Td（开/关）值 | 4µs/15µs |
| 测试条件 | 14V，10A，1000 欧姆，5V |
| 反向恢复时间 (trr) | 7 µs |
| 工作温度 | -40°C ~ 175°C（TJ） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | TO-252-3，DPak（2 引线 + 接片），SC-63 |
| 供应商器件封装 | TO-252AA |
| 基本产品编号 | FGD2736 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
