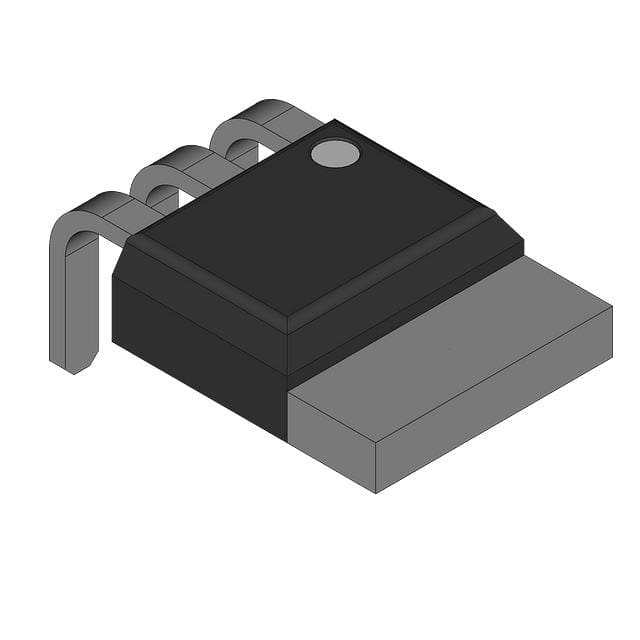

FGI3236-F085
FGI3236-F085
- In Stock: 0
- Manufacturer: onsemi
- Part Number: FGI3236-F085
- Detailed Description: IGBT 360 V 44 A 187 W 通孔 I2PAK（TO-262）
- Category: 分立半导体产品 | 晶体管 - IGBT - 单 IGBT
- RoHS Status： 符合 ROHS3 规范
Reference Price (USD)
1+
$2.4600
10+
$2.3124
100+
$2.1894
1000+
$2.0664
10000+
$1.9434
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | Automotive, AEC-Q101, EcoSPARK® |
| 包装 | 管件 |
| 标准包装 | 400 |
| 产品状态 | 最后售卖 |
| IGBT 类型 | - |
| 电压 - 集射极击穿（最大值） | 360 V |
| 电流 - 集电极 (Ic)（最大值） | 44 A |
| 不同 Vge、Ic 时 Vce(on)（最大值） | 1.4V @ 4V，6A |
| 功率 - 最大值 | 187 W |
| 开关能量 | - |
| 输入类型 | 逻辑 |
| 栅极电荷 | 20 nC |
| 25°C 时 Td（开/关）值 | -/5.4µs |
| 测试条件 | 300V，1 千欧，5V |
| 工作温度 | -40°C ~ 175°C（TJ） |
| 安装类型 | 通孔 |
| 封装/外壳 | TO-262-3，长引线，I²Pak，TO-262AA |
| 供应商器件封装 | I2PAK（TO-262） |
| 基本产品编号 | FGI3236 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 不适用 |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
