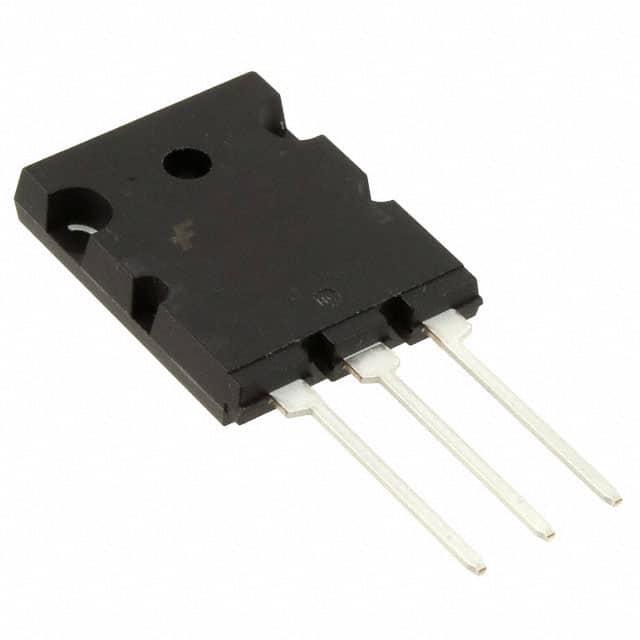

FGL40N120ANTU
FGL40N120ANTU
- In Stock: 0
- Manufacturer: onsemi
- Part Number: FGL40N120ANTU
- Detailed Description: IGBT NPT 1200V 64A TO264-3
- Category: 分立半导体产品 | 晶体管 - IGBT - 单 IGBT
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$10.7040
10+
$10.0618
100+
$9.5266
1000+
$8.9914
10000+
$8.4562
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | 散装 |
| 标准包装 | 375 |
| 产品状态 | 停产 |
| IGBT 类型 | NPT |
| 电压 - 集射极击穿（最大值） | 1200 V |
| 电流 - 集电极 (Ic)（最大值） | 64 A |
| 电流 - 集电极脉冲 (Icm) | 160 A |
| 不同 Vge、Ic 时 Vce(on)（最大值） | 3.2V @ 15V，40A |
| 功率 - 最大值 | 500 W |
| 开关能量 | 2.3mJ（开），1.1mJ（关） |
| 输入类型 | 标准 |
| 栅极电荷 | 220 nC |
| 25°C 时 Td（开/关）值 | 15ns/110ns |
| 测试条件 | 600V，40A，5 欧姆，15V |
| 工作温度 | -55°C ~ 150°C（TJ） |
| 安装类型 | 通孔 |
| 封装/外壳 | TO-264-3，TO-264AA |
| 供应商器件封装 | TO-264-3 |
| 基本产品编号 | FGL40N120 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
