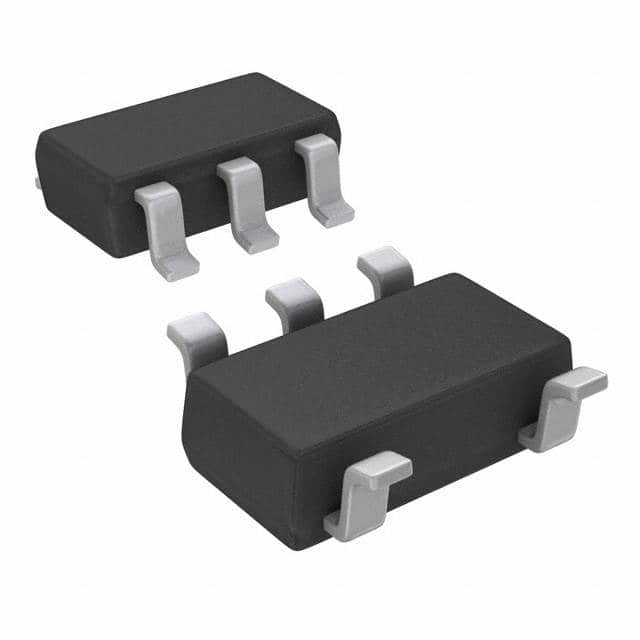

FPF2124
FPF2124
- In Stock: 0
- Manufacturer: onsemi
- Part Number: FPF2124
- Detailed Description: 电源开关/驱动器 1：1 P 通道 1.5A SOT-23-5
- Category: 集成电路（IC） | 电源管理（PMIC） - 配电开关，负载驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.2200
10+
$2.0868
100+
$1.9758
1000+
$1.8648
10000+
$1.7538
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | IntelliMAX™ |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3000 |
| 产品状态 | 停产 |
| 开关类型 | 通用 |
| 输出数 | 1 |
| 比率 - 输入:输出 | 1：1 |
| 输出配置 | 高端 |
| 输出类型 | P 通道 |
| 接口 | 开/关 |
| 电压 - 负载 | 1.8V ~ 5.5V |
| 电压 - 供电 (Vcc/Vdd) | 不需要 |
| 电流 - 输出（最大值） | 1.5A |
| 导通电阻（典型值） | 125 毫欧 |
| 输入类型 | 非反相 |
| 特性 | - |
| 故障保护 | 限流（可调），超温，反向电流，UVLO |
| 工作温度 | -40°C ~ 85°C（TA） |
| 安装类型 | 表面贴装型 |
| 供应商器件封装 | SOT-23-5 |
| 封装/外壳 | SC-74A，SOT-753 |
| 基本产品编号 | FPF2124 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
