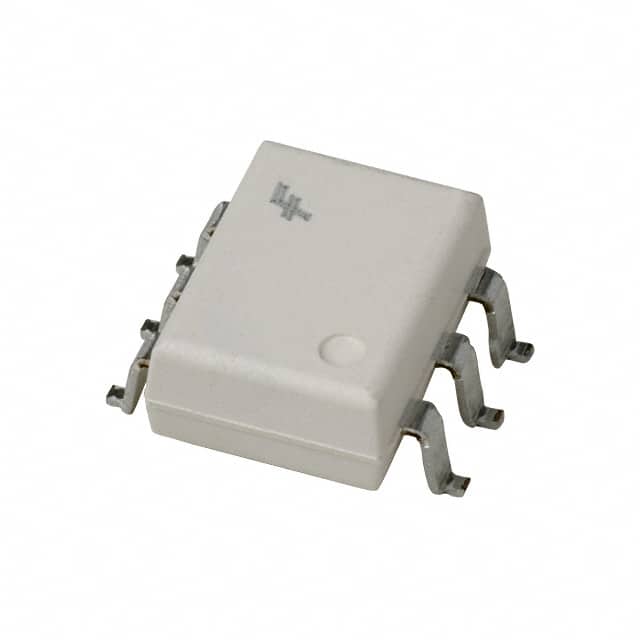

H11B1SR2VM
H11B1SR2VM
- In Stock: 1000
- Manufacturer: onsemi
- Part Number: H11B1SR2VM
- Detailed Description: OPTOISO 4.17KV DARL W/BASE 6SMD
- Category: 隔离器 | 光隔离器 - 晶体管，光电输出光隔离器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.3748
10+
$0.3523
100+
$0.3335
1000+
$0.3148
10000+
$0.2961
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 通道数 | 1 |
| 电压 - 隔离 | 4170Vrms |
| 电流传输比（最小值） | 500% @ 1mA |
| 电流传输比（最大值） | - |
| 接通 / 关断时间（典型值） | 25µs，18µs |
| 上升/下降时间（典型值） | - |
| 输入类型 | DC |
| 输出类型 | 有基极的达林顿晶体管 |
| 电压 - 输出（最大值） | 30V |
| 电流 - 输出/通道 | 150mA |
| 电压 - 正向 (Vf)（典型值） | 1.2V |
| 电流 - DC 正向 (If)（最大值） | 80 mA |
| Vce 饱和压降（最大） | 1V |
| 工作温度 | -40°C ~ 100°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 6-SMD，鸥翼 |
| 供应商器件封装 | 6-SMD |
| 基本产品编号 | H11B1 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
