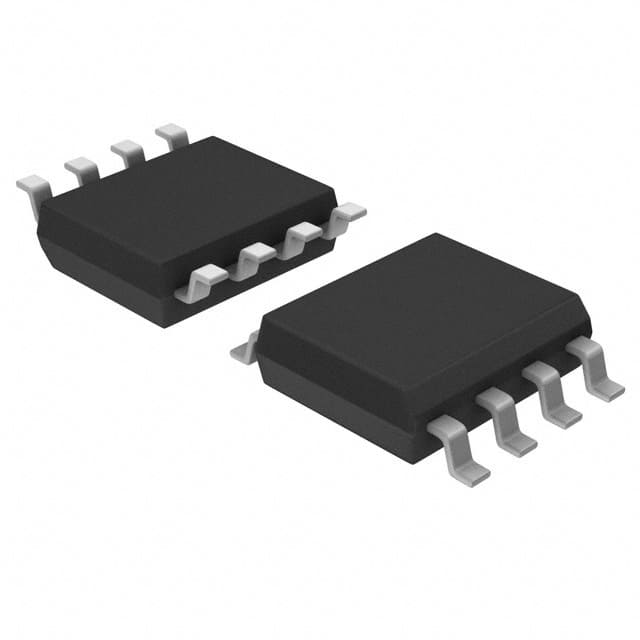

HAL3736DJ-A
HAL3736DJ-A
- Available: 3500
- Manufacturer: TDK-Micronas GmbH
- Part Number: HAL3736DJ-A
- Detailed Description: SENSOR ANGLE 360DEG SMD
- Category: 传感器，变送器 | 位置传感器 - 位置传感器 - 角度、线性位置测量
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.5800
10+
$5.2452
100+
$4.9662
1000+
$4.6872
10000+
$4.4082
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TDK-Micronas GmbH |
|---|---|
| 系列 | Automotive, AEC-Q100, Hal® 37 |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 3500 |
| 产品状态 | 在售 |
| 用于测量 | 角度，线性，旋转 |
| 技术 | 霍尔效应 |
| 旋转角度 - 电气，机械 | 0° ~ 360° |
| 线性范围 | - |
| 输出 | PWM，SENT |
| 输出信号 | - |
| 致动器类型 | 外磁铁，不含 |
| 线性度 | ±0.1% |
| 电阻容差 | - |
| 电压 - 供电 | 4.5V ~ 5.5V |
| 安装类型 | 表面贴装型 |
| 端接样式 | 鸥翼 |
| 工作温度 | -40°C ~ 170°C |
| 封装/外壳 | 8-SOIC（0.154，3.90mm 宽） |
| 供应商器件封装 | 8-SOIC-1 |
| 基本产品编号 | HAL3736 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
