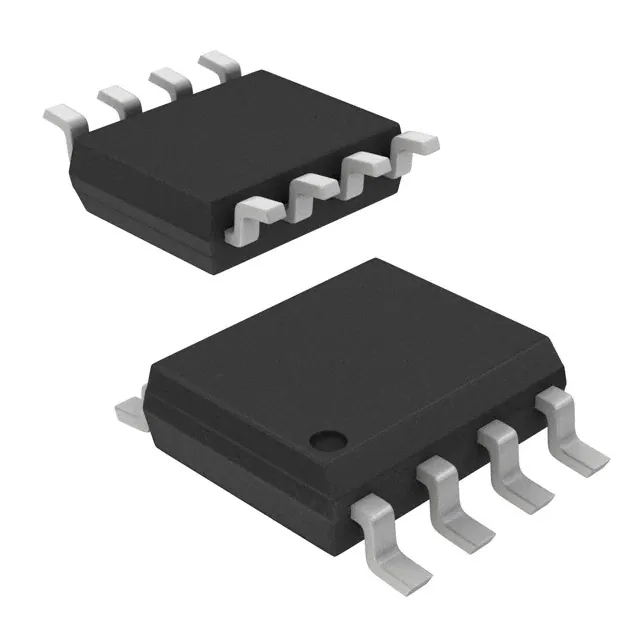

HCPL-070A
HCPL-070A
- Available: 1000
- Manufacturer: Broadcom Limited
- Part Number: HCPL-070A
- Detailed Description: OPTOISO 3.75KV DARL W/BASE 8SOIC
- Category: 隔离器 | 光隔离器 - 晶体管，光电输出光隔离器
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.5120
10+
$3.3013
100+
$3.1257
1000+
$2.9501
10000+
$2.7745
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 100 |
| 产品状态 | 在售 |
| 通道数 | 1 |
| 电压 - 隔离 | 3750Vrms |
| 电流传输比（最小值） | 600% @ 500µA |
| 电流传输比（最大值） | 8000% @ 500µA |
| 接通 / 关断时间（典型值） | 3µs，34µs |
| 上升/下降时间（典型值） | - |
| 输入类型 | DC |
| 输出类型 | 有基极的达林顿晶体管 |
| 电压 - 输出（最大值） | 18V |
| 电流 - 输出/通道 | 60mA |
| 电压 - 正向 (Vf)（典型值） | 1.25V |
| 电流 - DC 正向 (If)（最大值） | 5 mA |
| Vce 饱和压降（最大） | - |
| 工作温度 | 0°C ~ 70°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 8-SOIC（0.154"，3.90mm 宽） |
| 供应商器件封装 | 8-SO |
| 基本产品编号 | HCPL-070 |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
