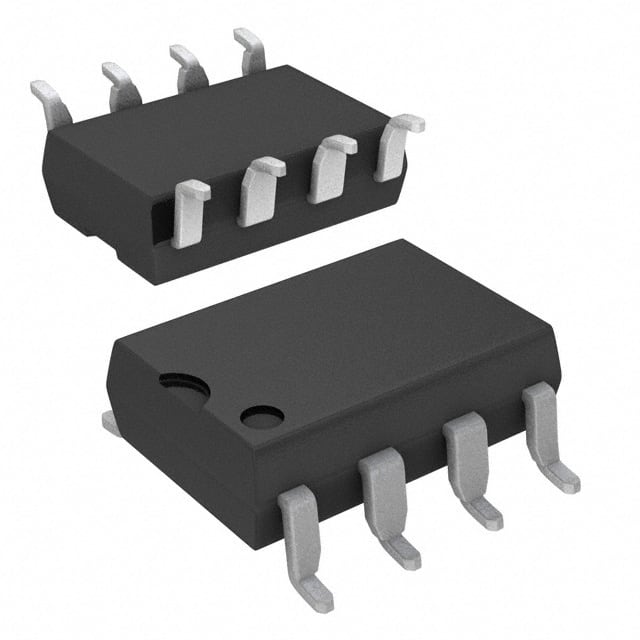

HCPL-2502-500E
HCPL-2502-500E
- In Stock: 0
- Manufacturer: Broadcom Limited
- Part Number: HCPL-2502-500E
- Detailed Description: 光隔离器 有基极的晶体管 输出 3750Vrms 1 通道 8-SMD
- Category: 隔离器 | 光隔离器 - 晶体管，光电输出光隔离器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.3536
10+
$1.2724
100+
$1.2047
1000+
$1.1370
10000+
$1.0693
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | =- |
| 包装 | =卷带（TR） | 剪切带（CT） |
| 标准包装 | =1000 |
| 产品状态 | =在售 |
| 通道数 | =1 |
| 电压 - 隔离 | =3750Vrms |
| 电流传输比（最小值） | =15% @ 16mA |
| 电流传输比（最大值） | =22% @ 16mA |
| 接通 / 关断时间（典型值） | =200ns，600ns |
| 上升/下降时间（典型值） | =- |
| 输入类型 | =DC |
| 输出类型 | =有基极的晶体管 |
| 电压 - 输出（最大值） | =20V |
| 电流 - 输出/通道 | =8mA |
| 电压 - 正向 (Vf)（典型值） | =1.5V |
| 电流 - DC 正向 (If)（最大值） | =25 mA |
| Vce 饱和压降（最大） | =- |
| 工作温度 | =-55°C ~ 100°C |
| 安装类型 | =表面贴装型 |
| 封装/外壳 | =8-SMD，鸥翼 |
| 供应商器件封装 | =8-SMD |
| 基本产品编号 | =HCPL-2502 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
