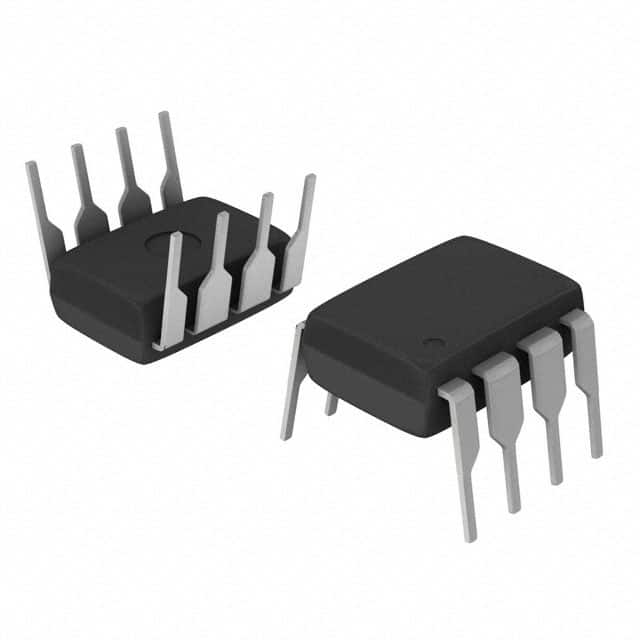

HCPL-263N#020
HCPL-263N#020
- In Stock: 0
- Manufacturer: Broadcom Limited
- Part Number: HCPL-263N#020
- Detailed Description: OPTOISO 5KV 2CH OPEN COLL 8DIP
- Category: 隔离器 | 光隔离器 - 逻辑输出光隔离器
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$6.3894
10+
$6.0060
100+
$5.6866
1000+
$5.3671
10000+
$5.0476
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 50 |
| 产品状态 | 在售 |
| 通道数 | 2 |
| 输入 - 侧 1/侧 2 | 2/0 |
| 电压 - 隔离 | 5000Vrms |
| 共模瞬变抗扰度（最小值） | 15kV/µs |
| 输入类型 | DC |
| 输出类型 | 开集，肖特基箝位 |
| 电流 - 输出/通道 | 50 mA |
| 数据速率 | 10MBd |
| 传播延迟 tpLH / tpHL（最大值） | 100ns，100ns |
| 上升/下降时间（典型值） | 42ns，12ns |
| 电压 - 正向 (Vf)（典型值） | 1.3V |
| 电流 - DC 正向 (If)（最大值） | 10mA |
| 电压 - 供电 | 4.5V ~ 5.5V |
| 工作温度 | -40°C ~ 85°C |
| 安装类型 | 通孔 |
| 封装/外壳 | 8-DIP（0.300"，7.62mm） |
| 供应商器件封装 | 8-DIP |
| 基本产品编号 | HCPL-263 |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
