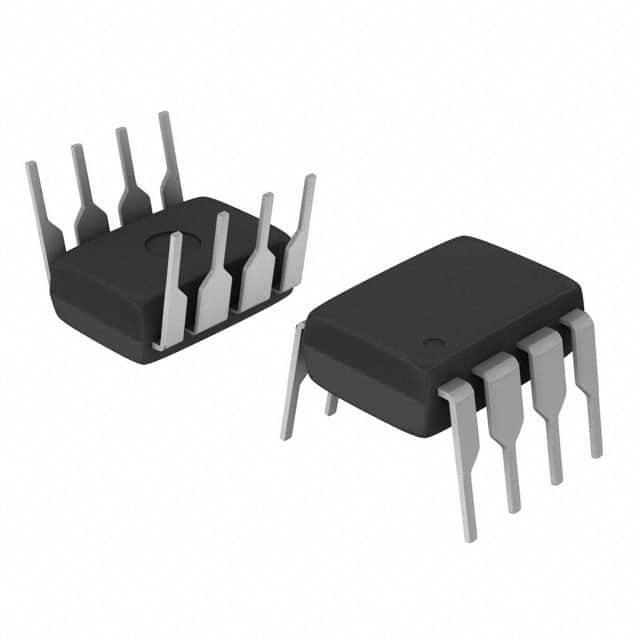

HCPL-3180-060
HCPL-3180-060
- In Stock: 0
- Manufacturer: Broadcom Limited
- Part Number: HCPL-3180-060
- Detailed Description: 2.5A 栅极驱动器 光学耦合 3750Vrms 1 通道 8-DIP
- Category: 隔离器 | 隔离器 - 栅极驱动器
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 50 |
| 产品状态 | - |
| 技术 | 光学耦合 |
| 通道数 | 1 |
| 电压 - 隔离 | 3750Vrms |
| 共模瞬变抗扰度（最小值） | 10kV/µs |
| 传播延迟 tpLH / tpHL（最大值） | 200ns，200ns |
| 脉宽失真（最大） | 65ns |
| 上升/下降时间（典型值） | 25ns，25ns |
| 电流 - 输出高、低 | 2A，2A |
| 电流 - 峰值输出 | 2.5A |
| 电压 - 正向 (Vf)（典型值） | 1.5V |
| 电流 - DC 正向 (If)（最大值） | 25 mA |
| 电压 - 输出供电 | 10V ~ 20V |
| 工作温度 | -40°C ~ 100°C |
| 安装类型 | 通孔 |
| 封装/外壳 | 8-DIP（0.300"，7.62mm） |
| 供应商器件封装 | 8-DIP |
| 认证机构 | CSA，IEC/EN/DIN，UR |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
