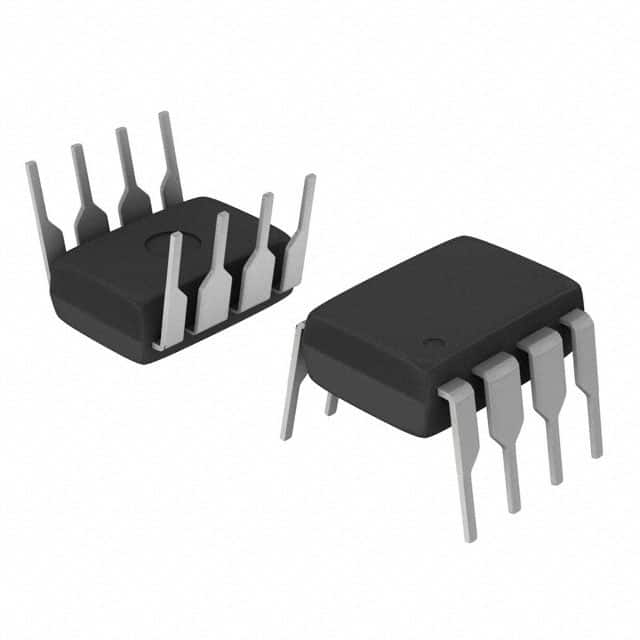

HCPL-9030
HCPL-9030
- In Stock: 0
- Manufacturer: Broadcom Limited
- Part Number: HCPL-9030
- Detailed Description: 通用 数字隔离器 2500Vrms 2 通道 110MBd 15kV/µs CMTI 8-DIP（0.300"，7.62mm）
- Category: 隔离器 | 数字隔离器
- RoHS Status： 不符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$17.3192
10+
$16.2801
100+
$15.4141
1000+
$14.5482
10000+
$13.6822
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 50 |
| 产品状态 | 在售 |
| 技术 | GMR（大型磁阻传感） |
| 类型 | 通用 |
| 隔离式电源 | 无 |
| 通道数 | 2 |
| 输入 - 侧 1/侧 2 | 2/0 |
| 通道类型 | 单向 |
| 电压 - 隔离 | 2500Vrms |
| 共模瞬变抗扰度（最小值） | 15kV/µs |
| 数据速率 | 110MBd |
| 传播延迟 tpLH / tpHL（最大值） | 15ns，15ns |
| 脉宽失真（最大） | 3ns |
| 上升/下降时间（典型值） | 1ns，1ns |
| 电压 - 供电 | 3V ~ 5.5V |
| 工作温度 | -55°C ~ 125°C |
| 安装类型 | 通孔 |
| 封装/外壳 | 8-DIP（0.300"，7.62mm） |
| 供应商器件封装 | 8-DIP |
| 基本产品编号 | HCPL-9030 |
Environmental & Export
| RoHS Status | 不符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
