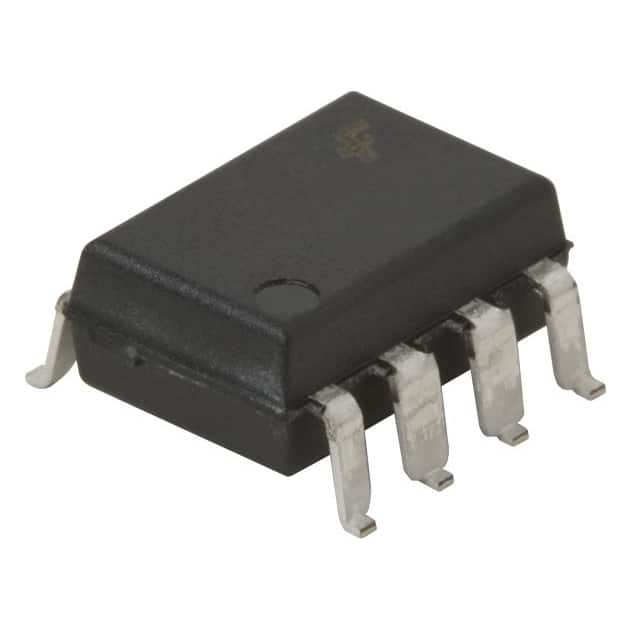

HCPL2630SDVM
HCPL2630SDVM
- In Stock: 1000
- Manufacturer: onsemi
- Part Number: HCPL2630SDVM
- Detailed Description: 光隔离器 - 逻辑输出 10Mbps 开集，肖特基箝位 2500Vrms 2 通道 10kV/µs（标准） CMTI 8-SMD
- Category: 隔离器 | 光隔离器 - 逻辑输出光隔离器
- RoHS Status： 符合 ROHS3 规范
Reference Price (USD)
1+
$1.2085
10+
$1.1360
100+
$1.0756
1000+
$1.0152
10000+
$0.9547
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 通道数 | 2 |
| 输入 - 侧 1/侧 2 | 2/0 |
| 电压 - 隔离 | 2500Vrms |
| 共模瞬变抗扰度（最小值） | 10kV/µs（标准） |
| 输入类型 | DC |
| 输出类型 | 开集，肖特基箝位 |
| 电流 - 输出/通道 | 50 mA |
| 数据速率 | 10Mbps |
| 传播延迟 tpLH / tpHL（最大值） | 75ns，75ns |
| 上升/下降时间（典型值） | 50ns，12ns |
| 电压 - 正向 (Vf)（典型值） | 1.4V |
| 电流 - DC 正向 (If)（最大值） | 30mA |
| 电压 - 供电 | 4.5V ~ 5.5V |
| 工作温度 | -40°C ~ 85°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 8-SMD，鸥翼 |
| 供应商器件封装 | 8-SMD |
| 基本产品编号 | HCPL2630 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
