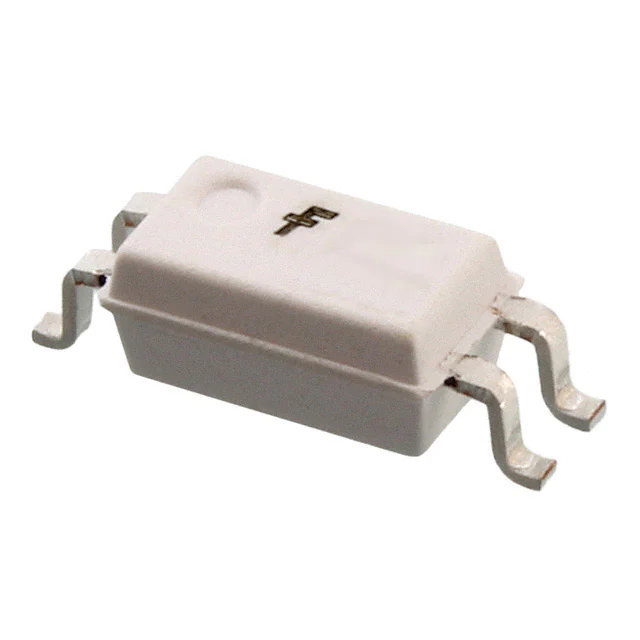

HMHAA280R2
HMHAA280R2
- In Stock: 0
- Manufacturer: onsemi
- Part Number: HMHAA280R2
- Detailed Description: OPTOISO 3.75KV TRANS 4-MINI-FLAT
- Category: 隔离器 | 光隔离器 - 晶体管，光电输出光隔离器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$1.2240
10+
$1.1506
100+
$1.0894
1000+
$1.0282
10000+
$0.9670
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 2500 |
| 产品状态 | 在售 |
| 通道数 | 1 |
| 电压 - 隔离 | 3750Vrms |
| 电流传输比（最小值） | 50% @ 5mA |
| 电流传输比（最大值） | 600% @ 5mA |
| 接通 / 关断时间（典型值） | - |
| 上升/下降时间（典型值） | 3µs，3µs |
| 输入类型 | AC，DC |
| 输出类型 | 晶体管 |
| 电压 - 输出（最大值） | 80V |
| 电流 - 输出/通道 | 50mA |
| 电压 - 正向 (Vf)（典型值） | 1.4V（最大） |
| 电流 - DC 正向 (If)（最大值） | 50 mA |
| Vce 饱和压降（最大） | 400mV |
| 工作温度 | -55°C ~ 100°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 4-SOIC（0.173"，4.40mm 宽） |
| 供应商器件封装 | 4-Mini-Flat |
| 基本产品编号 | HMHAA280 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
