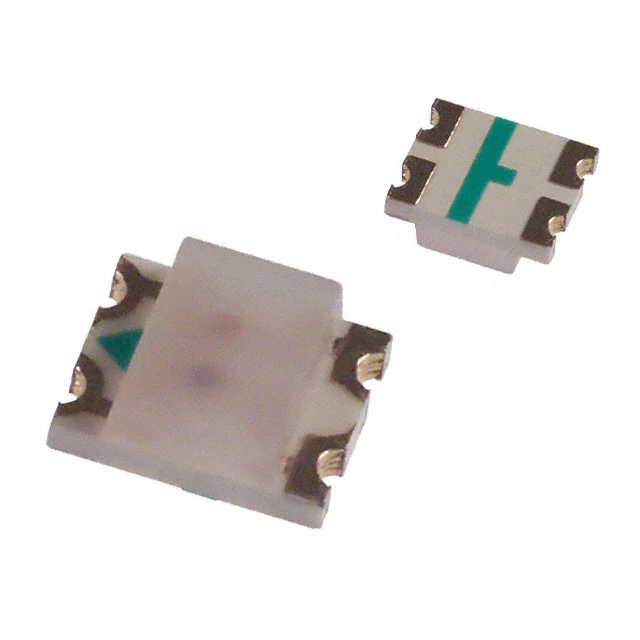

HSMF-C118
HSMF-C118
- Available: 1000
- Manufacturer: Broadcom Limited
- Part Number: HSMF-C118
- Detailed Description: LED RGB DIFFUSED CHIP SMD
- Category: 光电器件 | LED 指示 - 分立
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$2.7480
10+
$2.5831
100+
$2.4457
1000+
$2.3083
10000+
$2.1709
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Broadcom Limited |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 3000 |
| 产品状态 | 在售 |
| 颜色 | 红色，绿色，蓝色（RGB） |
| 配置 | 共阳极 |
| 透镜颜色 | 白色 |
| 透镜透明度 | 散射 |
| 毫烛光等级 | 90mcd 红色，120mcd 绿色，40mcd 蓝色 |
| 透镜样式 | 矩形，带平顶 |
| 透镜尺寸 | 2.00mm x 2.70mm |
| 电压 - 正向 (Vf)（典型值） | 1.9V 红色，3.5V 绿色，3.5V 蓝色 |
| 电流 - 测试 | 20mA 红色，20mA 绿色，20mA 蓝色 |
| 视角 | 135° 红，130° 绿，125° 蓝色 |
| 安装类型 | 表面贴装型 |
| 波长 - 主 | 626nm 红色，525nm 绿色，470nm 蓝色 |
| 波长 - 峰值 | 637nm 红色，523nm 绿色，468nm 蓝色 |
| 特性 | - |
| 封装/外壳 | 1210（3225 公制） |
| 供应商器件封装 | 片式 LED |
| 大小 / 尺寸 | 3.20mm 长 x 2.70mm 宽 |
| 高度（最大值） | 1.10mm |
| 基本产品编号 | HSMF-C118 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 2A（4 周） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
