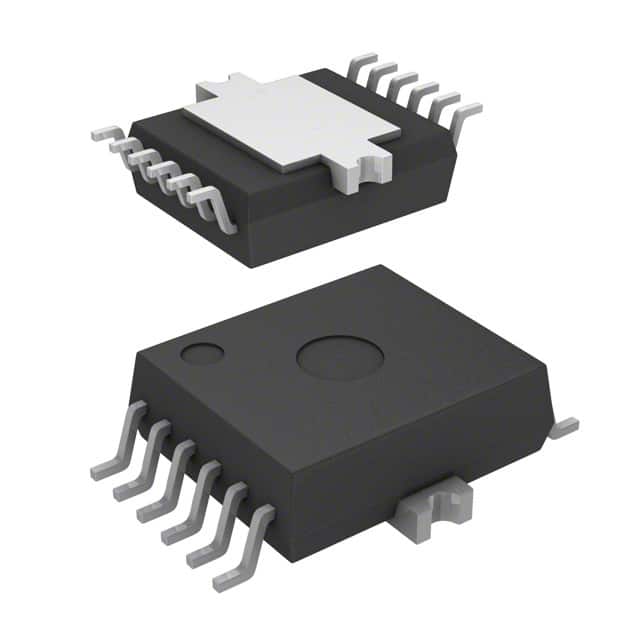

IFX9201SGAUMA1
IFX9201SGAUMA1
- In Stock: 2000
- Manufacturer: Infineon Technologies
- Part Number: IFX9201SGAUMA1
- Detailed Description: IC HALF-BRIDGE DRVR 2 CH 12DSO
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$5.8560
10+
$5.5046
100+
$5.2118
1000+
$4.9190
10000+
$4.6262
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Infineon Technologies |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 输出配置 | 半桥（2） |
| 应用 | DC 电机，通用 |
| 接口 | PWM，SPI |
| 负载类型 | 电感 |
| 技术 | 功率 MOSFET |
| 导通电阻（典型值） | 100 毫欧 LS，100 毫欧 HS |
| 电流 - 输出/通道 | 6A |
| 电流 - 峰值输出 | - |
| 电压 - 供电 | 5V ~ 36V |
| 电压 - 负载 | 5V ~ 36V |
| 工作温度 | -40°C ~ 125°C（TJ） |
| 特性 | - |
| 故障保护 | 限流，开路负载检测，超温，短路，UVLO |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 12-BSOP（0.295"，7.50mm 宽）裸露焊盘 |
| 供应商器件封装 | PG-DSO-12-17 |
| 基本产品编号 | IFX9201 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
