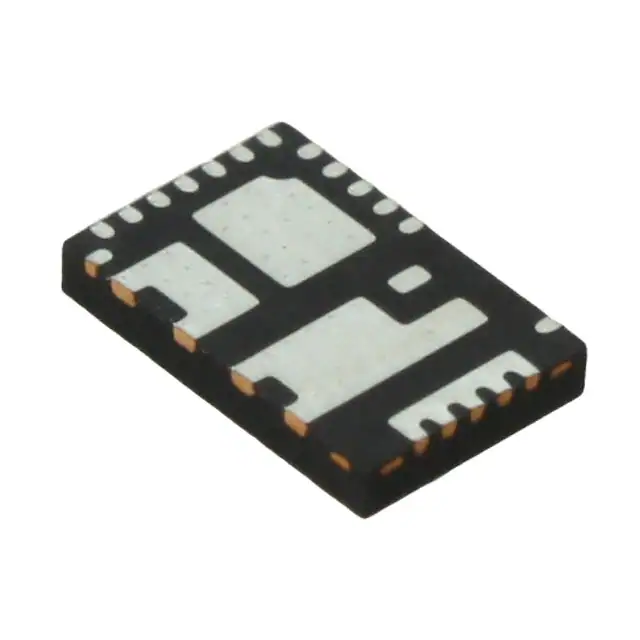

IR3553MTRPBF
IR3553MTRPBF
- Available: 1000
- Manufacturer: Infineon Technologies
- Part Number: IR3553MTRPBF
- Detailed Description: IC DRIVER GATE 40A PQFN
- Category: 集成电路（IC） | 电源管理（PMIC） - 全半桥驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Infineon Technologies |
|---|---|
| 系列 | PowIRstage® |
| 包装 | - |
| 标准包装 | 3000 |
| 产品状态 | 停产 |
| 输出配置 | 半桥 |
| 应用 | 同步降压转换器，稳压器 |
| 接口 | PWM |
| 负载类型 | 电感 |
| 技术 | 功率 MOSFET |
| 导通电阻（典型值） | - |
| 电流 - 输出/通道 | 40A |
| 电流 - 峰值输出 | 60A |
| 电压 - 供电 | 4.5V ~ 7V |
| 电压 - 负载 | 4.5V ~ 15V |
| 工作温度 | -40°C ~ 125°C（TJ） |
| 特性 | 自举电路，二极管仿真，状态标志 |
| 故障保护 | 超温，UVLO |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 25-PowerVFQFN |
| 供应商器件封装 | 25-PQFN（4x6） |
| 基本产品编号 | IR3553 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
