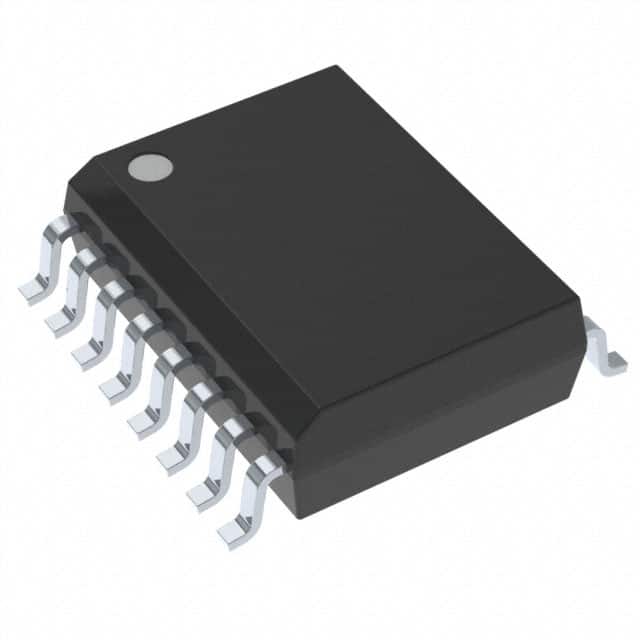

ISO7242MDWG4
ISO7242MDWG4
- Available: 40
- Manufacturer: Texas Instruments
- Part Number: ISO7242MDWG4
- Detailed Description: DGTL ISO 2500VRMS 4CH GP 16SOIC
- Category: 隔离器 | 数字隔离器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| 系列 | - |
| 包装 | 管件 |
| 标准包装 | 40 |
| 产品状态 | 停止提供 |
| 技术 | 容性耦合 |
| 类型 | 通用 |
| 隔离式电源 | 无 |
| 通道数 | 4 |
| 输入 - 侧 1/侧 2 | 2/2 |
| 通道类型 | 单向 |
| 电压 - 隔离 | 2500Vrms |
| 共模瞬变抗扰度（最小值） | 25kV/µs |
| 数据速率 | 150Mbps |
| 传播延迟 tpLH / tpHL（最大值） | 23ns，23ns |
| 脉宽失真（最大） | 2ns |
| 上升/下降时间（典型值） | 2ns，2ns |
| 电压 - 供电 | 3.15V ~ 5.5V |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 16-SOIC（0.295"，7.50mm 宽） |
| 供应商器件封装 | 16-SOIC |
| 基本产品编号 | ISO7242 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 2（1 年） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
