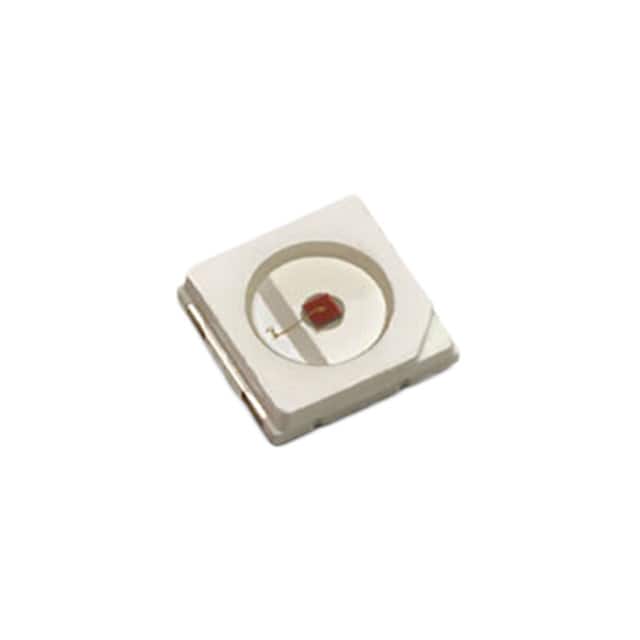

L135-R625003500000
L135-R625003500000
- In Stock: 0
- Manufacturer: Lumileds
- Part Number: L135-R625003500000
- Detailed Description: LED 照明 - 彩色 LUXEON 3535L 红色 625nm（620nm ~ 630nm） 1414（3535 公制）
- Category: 光电器件 | 彩色 LED 照明
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Lumileds |
|---|---|
| 系列 | LUXEON 3535L |
| 包装 | 卷带（TR） |
| 标准包装 | 5000 |
| 产品状态 | 停产 |
| 颜色 | 红色 |
| 波长 | 625nm（620nm ~ 630nm） |
| 电流 - 测试 | 100mA |
| 电压 - 正向 (Vf)（典型值） | 2.1V |
| 流明/瓦，不同电流 - 测试时 | 57 lm/W |
| 电流 - 最大值 | 125mA |
| 不同电流/温度下的光通量 | 12lm（10lm ~ 14lm） |
| 温度 - 测试 | 25°C |
| 视角 | 115° |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 1414（3535 公制） |
| 供应商器件封装 | 3535 |
| 大小 / 尺寸 | 0.138" 长 x 0.134" 宽（3.50mm x 3.40mm） |
| 高度 - 安装（最大值） | 0.035"（0.90mm） |
| 封装热阻 | 20°C/W |
| 基本产品编号 | L135 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 2（1 年） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
