L1CU-3080000000000
L1CU-3080000000000
- Available: 2000
- Manufacturer: Lumileds
- Part Number: L1CU-3080000000000

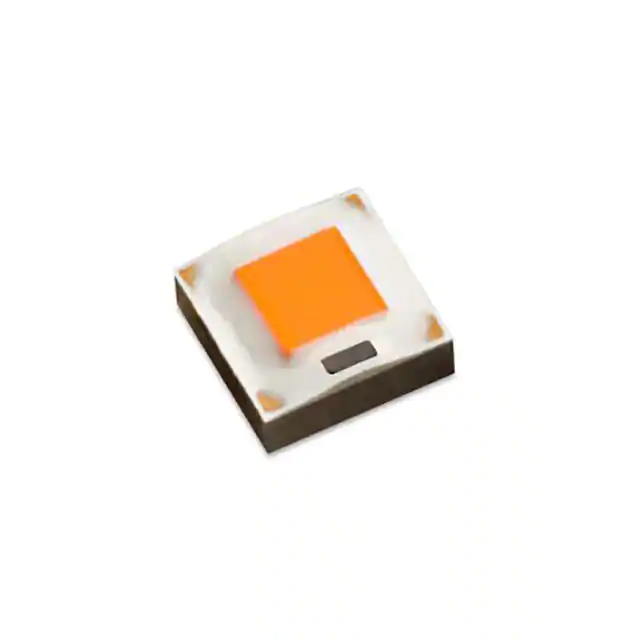

- Detailed Description: LED LUXEON CZ WHITE SMD
- Category: 光电器件 | 白色 LED 照明
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.1920
10+
$3.0005
100+
$2.8409
1000+
$2.6813
10000+
$2.5217
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Lumileds |
|---|---|
| 系列 | LUXEON CZ |
| 包装 | - |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 颜色 | 白色，暖色 |
| CCT (K) | 3000K |
| 85°C 时光通量，电流 - 测试 | 95lm（标准） |
| 25°C 时光通量，电流 - 测试 | - |
| 电流 - 测试 | 350mA |
| 电压 - 正向 (Vf)（典型值） | 2.75V |
| 流明/瓦，不同电流 - 测试时 | 99 lm/W |
| CRI（显色指数） | 80 |
| 电流 - 最大值 | 1.225A |
| 视角 | 120° |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 3-SMD，无引线 |
| 供应商器件封装 | 3-SMD |
| 大小 / 尺寸 | 0.079" 长 x 0.079" 宽（2.00mm x 2.00mm） |
| 高度 - 安装（最大值） | 0.036"（0.92mm） |
| 封装热阻 | 3.2°C/W |
| 基本产品编号 | L1CU |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
