L2C5-30901202E06C0
L2C5-30901202E06C0
- In Stock: 0
- Manufacturer: Lumileds
- Part Number: L2C5-30901202E06C0

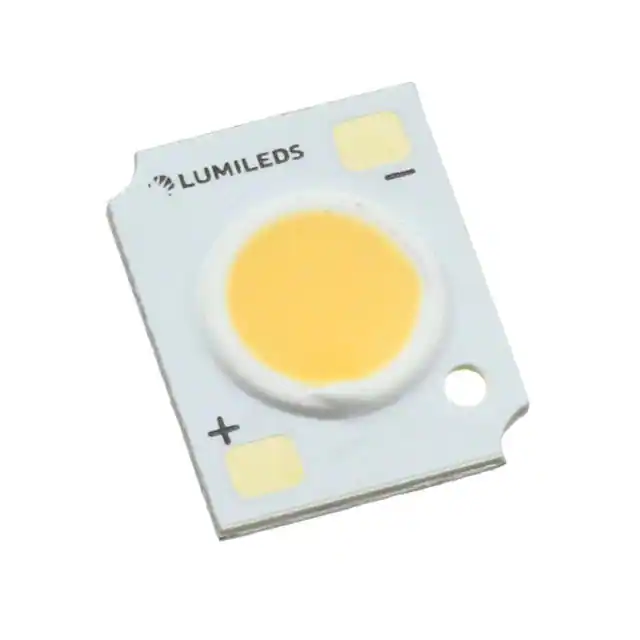

- Detailed Description: LED COB LUXEON WHITE 3000K SQ
- Category: 光电器件 | COB，引擎，模块，灯条
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$11.0040
10+
$10.3438
100+
$9.7936
1000+
$9.2434
10000+
$8.6932
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Lumileds |
|---|---|
| 系列 | LUXEON CoB, CrispWhite Gen 2 |
| 包装 | - |
| 标准包装 | 100 |
| 产品状态 | 在售 |
| 类型 | 板上芯片（COB） |
| 颜色 | 白色，暖色 |
| CCT (K) | 3000K 3 阶麦克亚当椭圆 |
| 波长 | - |
| 配置 | 矩形 |
| 不同电流/温度下的光通量 | 651lm（标准） |
| 电流 - 测试 | 200mA |
| 温度 - 测试 | 85°C |
| 电压 - 正向 (Vf)（典型值） | 35V |
| 流明/瓦，不同电流 - 测试时 | 93 lm/W |
| 电流 - 最大值 | - |
| CRI（显色指数） | 90 |
| 视角 | 115° |
| 特性 | - |
| 大小 / 尺寸 | 12.00mm 长 x 15.00mm 宽 |
| 高度 | 1.50mm |
| 发光面 (LES) | 6.50mm 直径 |
| 透镜类型 | 扁平 |
| 基本产品编号 | L2C5 |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
