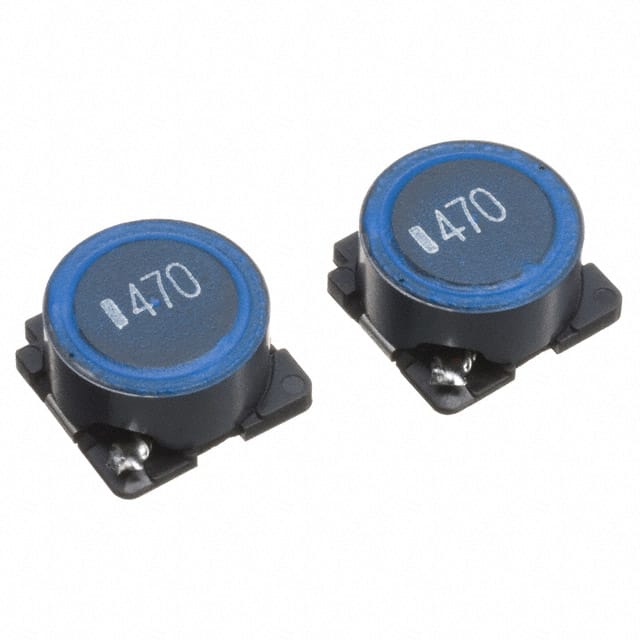

LGJ12565TS-152MR37-H
LGJ12565TS-152MR37-H
- In Stock: 0
- Manufacturer: TDK Corporation
- Part Number: LGJ12565TS-152MR37-H
- Detailed Description: FIXED IND 1.5MH 400MA 2.8OHM SMD
- Category: 电感器，线圈，扼流圈 | 固定电感器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$8.0040
10+
$7.5238
100+
$7.1236
1000+
$6.7234
10000+
$6.3232
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TDK Corporation |
|---|---|
| 系列 | LGJ |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 500 |
| 产品状态 | 不适用于新设计 |
| 类型 | 鼓芯，绕线式 |
| 材料 - 磁芯 | 铁氧体 |
| 电感 | 1.5 mH |
| 容差 | ±20% |
| 额定电流（安培） | 400 mA |
| 电流 - 饱和 （Isat） | 370mA |
| 屏蔽 | 屏蔽 |
| DC 电阻 (DCR) | 2.8 欧姆 |
| 不同频率时 Q 值 | - |
| 频率 - 自谐振 | - |
| 等级 | AEC-Q200 |
| 工作温度 | -40°C ~ 125°C |
| 电感频率 - 测试 | 1 kHz |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 非标准 |
| 大小 / 尺寸 | 0.492 长 x 0.492 宽（12.50mm x 12.50mm） |
| 高度 - 安装（最大值） | 0.256（6.50mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | |
| ECCN | EAR99 |
| HTSUS | 8504.50.4000 |
