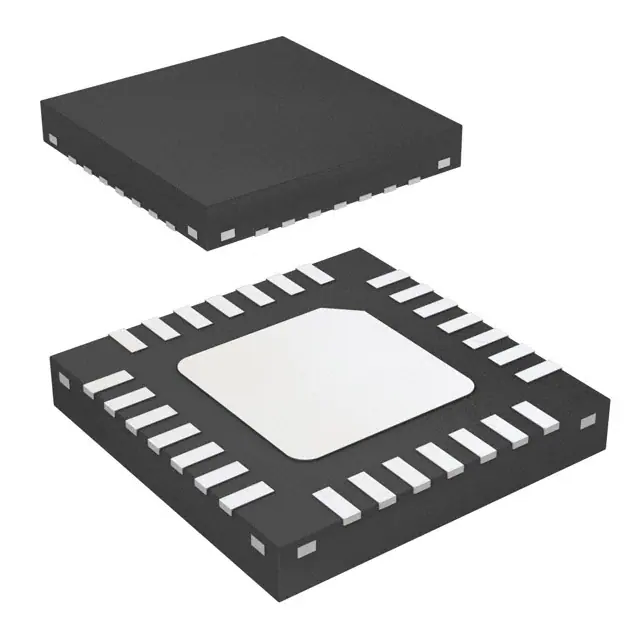

LM5045SQX/NOPB
LM5045SQX/NOPB
- Available: 1000
- Manufacturer: Texas Instruments
- Part Number: LM5045SQX/NOPB
- Detailed Description: IC OFFLINE SW FULL-BRDG 28WQFN
- Category: 集成电路（IC） | 电源管理（PMIC） - AC DC 转换器，离线开关
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.3264
10+
$3.1268
100+
$2.9605
1000+
$2.7942
10000+
$2.6279
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| 系列 | - |
| 包装 | - |
| 标准包装 | 4500 |
| 产品状态 | 在售 |
| 输出隔离 | 隔离 |
| 内部开关 | 无 |
| 电压 - 击穿 | - |
| 拓扑 | 全桥 |
| 电压 - 供电 (Vcc/Vdd) | 14V ~ 100V |
| 占空比 | - |
| 频率 - 开关 | 最高 2MHz |
| 故障保护 | 限流，超温，过压 |
| 控制特性 | 频率控制，软启动，同步 |
| 工作温度 | -40°C ~ 125°C（TJ） |
| 封装/外壳 | 28-WFQFN 裸露焊盘 |
| 供应商器件封装 | 28-WQFN（5x5） |
| 安装类型 | 表面贴装型 |
| 基本产品编号 | LM5045 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
