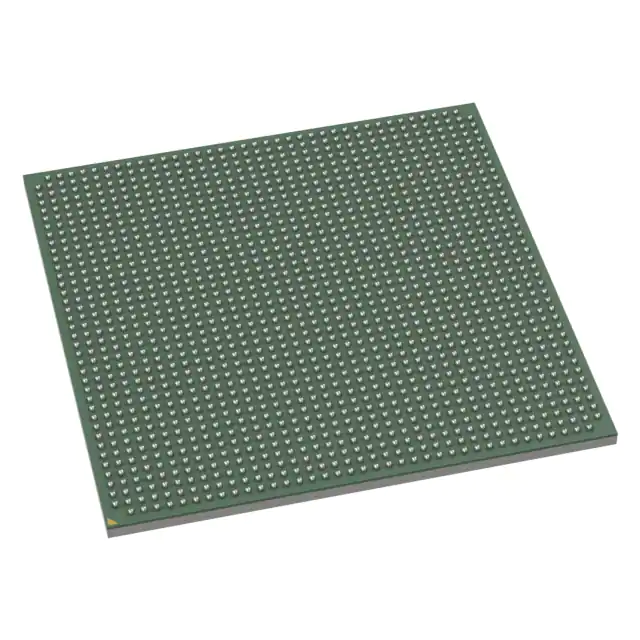

LX2160XE72029B
LX2160XE72029B
- In Stock: 0
- Manufacturer: NXP USA Inc.
- Part Number: LX2160XE72029B
- Detailed Description: ARM® Cortex®-A72 微处理器 IC QorlQ LX2 16 核，64 位 2GHz 1517-FCPBGA（40x40）
- Category: 集成电路（IC） | 嵌入式 - 微处理器
- RoHS Status： 符合 ROHS3 规范
Reference Price (USD)
1+
$952.3680
10+
$895.2259
100+
$847.6075
1000+
$799.9891
10000+
$752.3707
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | NXP USA Inc. |
|---|---|
| 系列 | QorlQ LX2 |
| 包装 | - |
| 标准包装 | 21 |
| 产品状态 | 在售 |
| 核心处理器 | ARM® Cortex®-A72 |
| 内核数/总线宽度 | 16 核，64 位 |
| 速度 | 2GHz |
| 协处理器/DSP | - |
| RAM 控制器 | DDR4 |
| 图形加速 | 是 |
| 显示与接口控制器 | - |
| 以太网 | 100Gbps（2） |
| SATA | SATA 3.0（4） |
| USB | USB 3.0（2）+ PHY（2） |
| 电压 - I/O | 1.2V，1.8V，3.3V |
| 工作温度 | -40°C ~ 105°C（TJ） |
| 安全特性 | 安全护套，TrustZone® |
| 封装/外壳 | 1517-BBGA，FCBGA |
| 供应商器件封装 | 1517-FCPBGA（40x40） |
| 附加接口 | CANbus，I²C，MMC/SD，SPI，UART |
| 基本产品编号 | LX2160 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | |
| REACH Status | 非 REACH 产品 |
| ECCN | 5A002A NXP |
| HTSUS | 8542.31.0001 |
