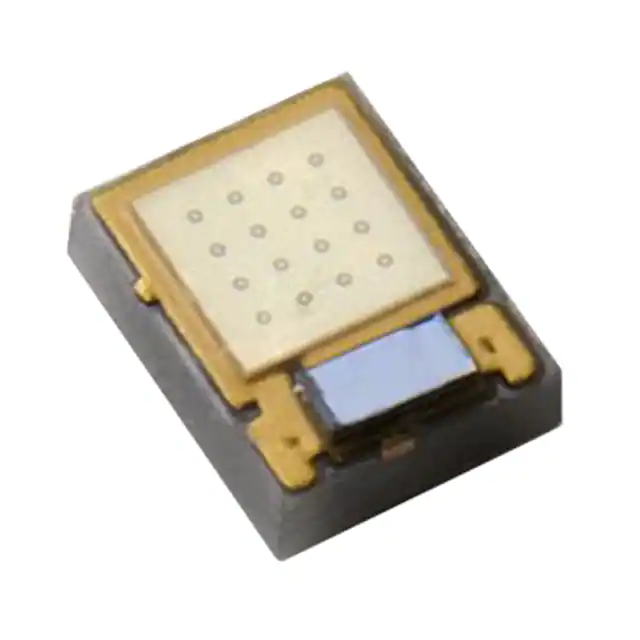

LXZ1-PB01
LXZ1-PB01
- Available: 609
- Manufacturer: Lumileds
- Part Number: LXZ1-PB01
- Detailed Description: LED LUXEON Z BLUE 470NM SMD
- Category: 光电器件 | 彩色 LED 照明
- RoHS Status： 符合 RoHS 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.7680
10+
$3.5419
100+
$3.3535
1000+
$3.1651
10000+
$2.9767
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Lumileds |
|---|---|
| 系列 | LUXEON Z |
| 包装 | - |
| 标准包装 | 2000 |
| 产品状态 | 在售 |
| 颜色 | 蓝色 |
| 波长 | 470nm（460nm ~ 480nm） |
| 电流 - 测试 | 500mA |
| 电压 - 正向 (Vf)（典型值） | 2.85V |
| 流明/瓦，不同电流 - 测试时 | 22 lm/W |
| 电流 - 最大值 | 1A |
| 不同电流/温度下的光通量 | 32lm（24lm ~ 40lm） |
| 温度 - 测试 | 25°C |
| 视角 | 125° |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 0705（1713 裸露焊盘） |
| 供应商器件封装 | SMD |
| 大小 / 尺寸 | 0.067" 长 x 0.051" 宽（1.70mm x 1.30mm） |
| 高度 - 安装（最大值） | 0.026"（0.66mm） |
| 封装热阻 | 5°C/W |
Environmental & Export
| RoHS Status | 符合 RoHS 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
