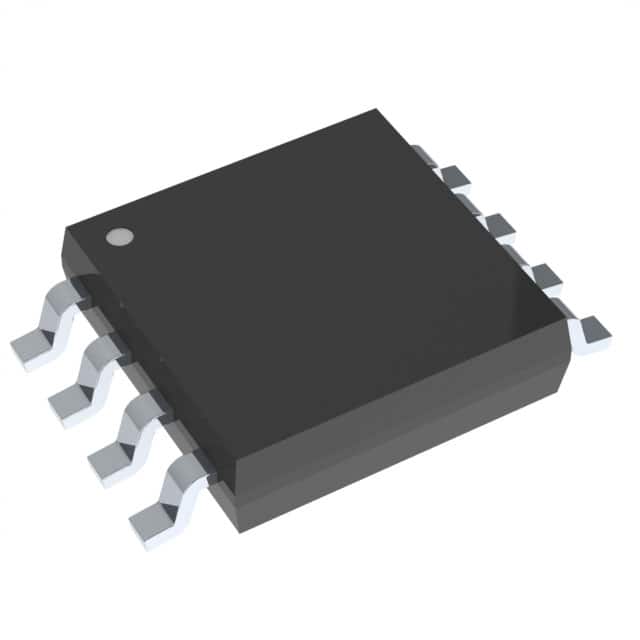

MAX22517AWA+
MAX22517AWA+
- In Stock: 0
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Number: MAX22517AWA+
- Detailed Description: IC 2-CHL DIGITAL ISOLATOR SOIC
- Category: 隔离器 | 数字隔离器
- RoHS Status：
- Datasheet: Datasheet
Reference Price (USD)
1+
$6.2640
10+
$5.8882
100+
$5.5750
1000+
$5.2618
10000+
$4.9486
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc./Maxim Integrated |
|---|---|
| 系列 | - |
| 包装 | 托盘 |
| 标准包装 | 280 |
| 产品状态 | 在售 |
| 技术 | 容性耦合 |
| 类型 | 通用 |
| 隔离式电源 | 无 |
| 通道数 | 2 |
| 输入 - 侧 1/侧 2 | 2/0 |
| 通道类型 | 单向 |
| 电压 - 隔离 | 3500Vrms |
| 共模瞬变抗扰度（最小值） | 50kV/µs |
| 数据速率 | 1Mbps |
| 传播延迟 tpLH / tpHL（最大值） | 130ns，130ns |
| 脉宽失真（最大） | 20ns |
| 上升/下降时间（典型值） | 20ns，20ns |
| 电压 - 供电 | 3V ~ 5.5V |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 8-SOIC（0.209"，5.30mm 宽） |
| 供应商器件封装 | 8-SOIC |
| 基本产品编号 | MAX22517 |
Environmental & Export
| RoHS Status | |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
