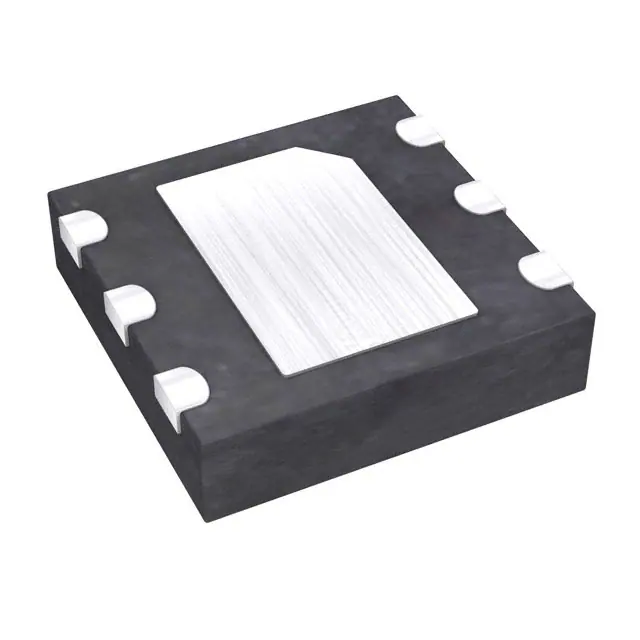

MAX5078BATT+T
MAX5078BATT+T
- Available: 1000
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Part Number: MAX5078BATT+T
- Detailed Description: IC GATE DRVR LOW-SIDE 6TDFN
- Category: 集成电路（IC） | 电源管理（PMIC） - 栅极驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$16.8600
10+
$15.8484
100+
$15.0054
1000+
$14.1624
10000+
$13.3194
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Analog Devices Inc./Maxim Integrated |
|---|---|
| 系列 | - |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 2500 |
| 产品状态 | 不适用于新设计 |
| 驱动配置 | 低端 |
| 通道类型 | 单路 |
| 驱动器数 | 1 |
| 栅极类型 | N 沟道 MOSFET |
| 电压 - 供电 | 4V ~ 15V |
| 逻辑电压 - VIL，VIH | 0.8V，2.1V |
| 电流 - 峰值输出（灌入，拉出） | 4A，4A |
| 输入类型 | 反相，非反相 |
| 上升/下降时间（典型值） | 32ns，26ns |
| 工作温度 | -40°C ~ 150°C（TJ） |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 6-WDFN 裸露焊盘 |
| 供应商器件封装 | 6-TDFN（3x3） |
| 基本产品编号 | MAX5078 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
