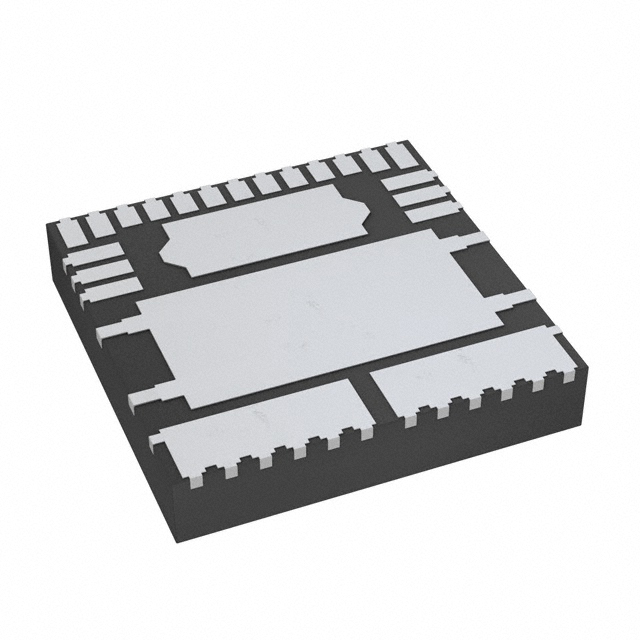

MC20XS4200FK
MC20XS4200FK
- Available: 840
- Manufacturer: NXP USA Inc.
- Part Number: MC20XS4200FK
- Detailed Description: IC PWR SWITCH N-CHAN 1:1 23PQFN
- Category: 集成电路（IC） | 电源管理（PMIC） - 配电开关，负载驱动器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.0000
10+
$0.0000
100+
$0.0000
1000+
$0.0000
10000+
$0.0000
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | NXP USA Inc. |
|---|---|
| 系列 | - |
| 包装 | 托盘 |
| 标准包装 | 840 |
| 产品状态 | 停产 |
| 开关类型 | 通用 |
| 输出数 | 2 |
| 比率 - 输入:输出 | 1：1 |
| 输出配置 | 高端 |
| 输出类型 | N 通道 |
| 接口 | SPI |
| 电压 - 负载 | 8V ~ 36V |
| 电压 - 供电 (Vcc/Vdd) | 3V ~ 5.5V |
| 电流 - 输出（最大值） | 3A |
| 导通电阻（典型值） | 20 毫欧（最大） |
| 输入类型 | - |
| 特性 | 内部 PWM，压摆率受控型，看门狗定时器 |
| 故障保护 | 限流（固定），开路负载检测，超温，UVLO |
| 工作温度 | -40°C ~ 125°C（TA） |
| 安装类型 | 表面贴装型 |
| 供应商器件封装 | 23-PQFN（12x12） |
| 封装/外壳 | 23-PowerQFN |
| 基本产品编号 | MC20 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
