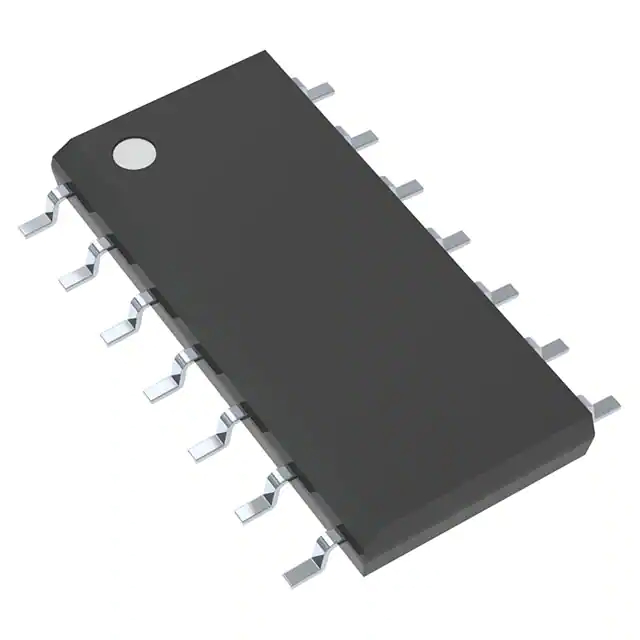

MC74HC03ADR2G
MC74HC03ADR2G
- Available: 25000
- Manufacturer: onsemi
- Part Number: MC74HC03ADR2G
- Detailed Description: IC GATE NAND OD 4CH 2-INP 14SOIC
- Category: 集成电路（IC） | 逻辑 - 门和反相器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.6000
10+
$0.5640
100+
$0.5340
1000+
$0.5040
10000+
$0.4740
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | 74HC |
| 包装 | - |
| 标准包装 | 2500 |
| 产品状态 | 在售 |
| 逻辑类型 | 与非门 |
| 电路数 | 4 |
| 输入数 | 2 |
| 特性 | 开路漏极 |
| 电压 - 供电 | 2V ~ 6V |
| 电流 - 静态（最大值） | 1 µA |
| 电流 - 输出高、低 | -，5.2mA |
| 逻辑电平 - 低 | 0.5V ~ 1.8V |
| 逻辑电平 - 高 | 1.5V ~ 4.2V |
| 不同 V、最大 CL 时最大传播延迟 | 20ns @ 6V，50pF |
| 工作温度 | -55°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 供应商器件封装 | 14-SOIC |
| 封装/外壳 | 14-SOIC（0.154"，3.90mm 宽） |
| 基本产品编号 | 74HC03 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
