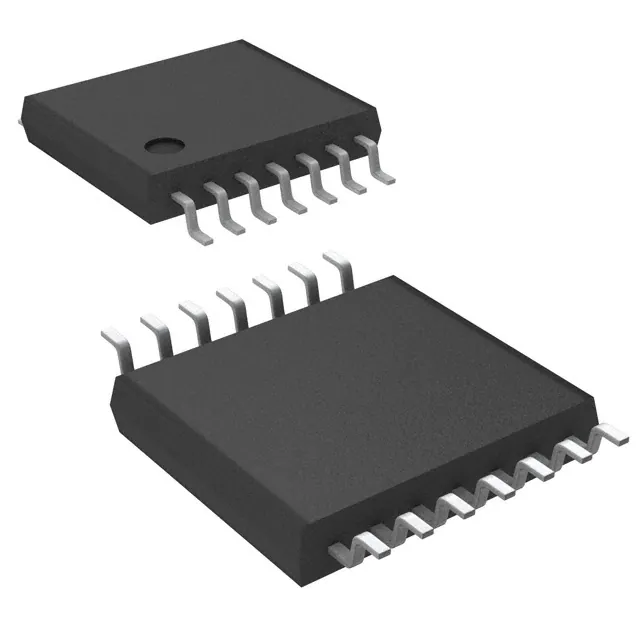

MC74VHC00DTR2G
MC74VHC00DTR2G
- In Stock: 0
- Manufacturer: onsemi
- Part Number: MC74VHC00DTR2G
- Detailed Description: IC GATE NAND 4CH 2-INP 14TSSOP
- Category: 集成电路（IC） | 逻辑 - 门和反相器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.7560
10+
$0.7106
100+
$0.6728
1000+
$0.6350
10000+
$0.5972
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | onsemi |
|---|---|
| 系列 | 74VHC |
| 包装 | - |
| 标准包装 | 2500 |
| 产品状态 | 在售 |
| 逻辑类型 | 与非门 |
| 电路数 | 4 |
| 输入数 | 2 |
| 特性 | - |
| 电压 - 供电 | 2V ~ 5.5V |
| 电流 - 静态（最大值） | 2 µA |
| 电流 - 输出高、低 | 8mA，8mA |
| 逻辑电平 - 低 | 0.5V |
| 逻辑电平 - 高 | 1.5V |
| 不同 V、最大 CL 时最大传播延迟 | 7.5ns @ 5V，50pF |
| 工作温度 | -55°C ~ 125°C |
| 安装类型 | 表面贴装型 |
| 供应商器件封装 | 14-TSSOP |
| 封装/外壳 | 14-TSSOP（0.173"，4.40mm 宽） |
| 基本产品编号 | MC74VHC00 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
