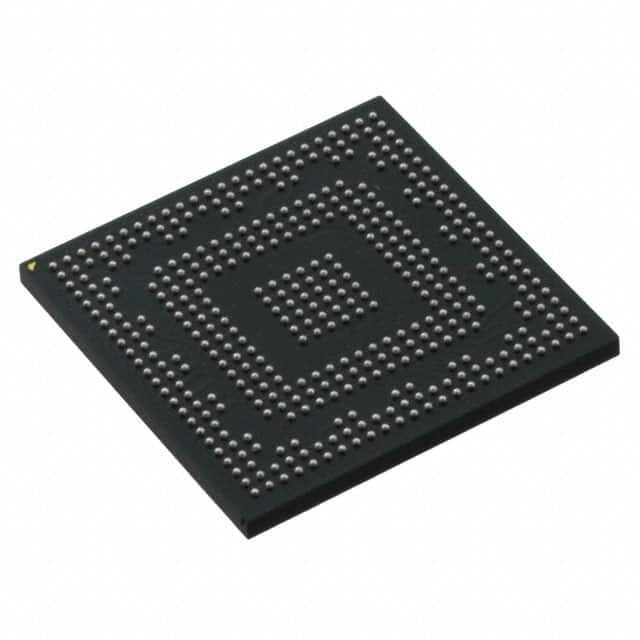

MCIMX27LVOP4A
MCIMX27LVOP4A
- Available: 450
- Manufacturer: NXP USA Inc.
- Part Number: MCIMX27LVOP4A
- Detailed Description: IC MPU I.MX27 400MHZ 404MAPBGA
- Category: 集成电路（IC） | 嵌入式 - 微处理器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$22.3680
10+
$21.0259
100+
$19.9075
1000+
$18.7891
10000+
$17.6707
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | NXP USA Inc. |
|---|---|
| 系列 | i.MX27 |
| 包装 | 托盘 |
| 标准包装 | 450 |
| 产品状态 | 不适用于新设计 |
| 核心处理器 | ARM926EJ-S |
| 内核数/总线宽度 | 1 核，32 位 |
| 速度 | 400MHz |
| 协处理器/DSP | 安全；SAHARAH2 |
| RAM 控制器 | DDR |
| 图形加速 | 是 |
| 显示与接口控制器 | 小键盘，LCD |
| 以太网 | 10/100Mbps（1） |
| SATA | - |
| USB | USB 2.0 + PHY（3） |
| 电压 - I/O | 2.0V，2.5V，2.7V，3.0V |
| 工作温度 | -20°C ~ 85°C（TA） |
| 安全特性 | 密码技术，随机数发生器，RTIC，安全保险丝盒，安全存储器 |
| 封装/外壳 | 404-LFBGA |
| 供应商器件封装 | 404-LFBGA（17x17） |
| 附加接口 | 1 线，AC97，I²C，I²S，IDE，MMC/SD，SPI，SSI，UART |
| 基本产品编号 | MCIMX27 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
