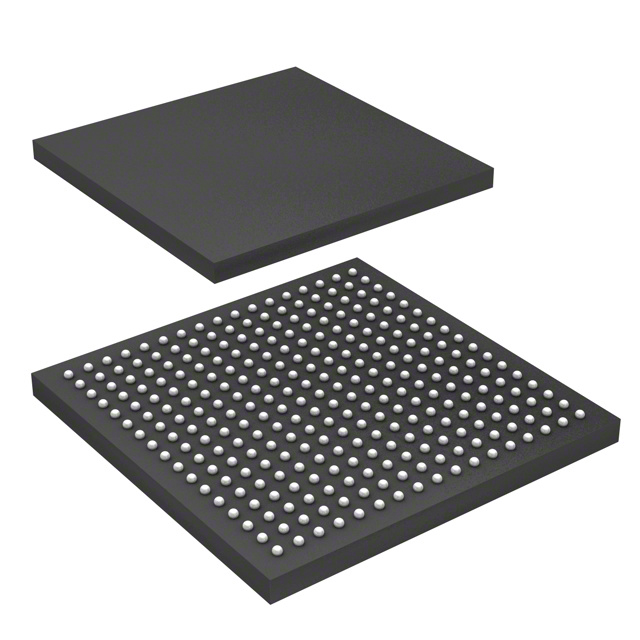

MCIMX6G1CVM05ABR
MCIMX6G1CVM05ABR
- Available: 1000
- Manufacturer: NXP USA Inc.
- Part Number: MCIMX6G1CVM05ABR
- Detailed Description: I.MX 32-BIT MPU ARM CORTEX-A7 C
- Category: 集成电路（IC） | 嵌入式 - 微处理器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$17.3420
10+
$16.3015
100+
$15.4344
1000+
$14.5673
10000+
$13.7002
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | NXP USA Inc. |
|---|---|
| 系列 | i.MX6UL |
| 包装 | 卷带（TR） |
| 标准包装 | 1000 |
| 产品状态 | 在售 |
| 核心处理器 | ARM® Cortex®-A7 |
| 内核数/总线宽度 | 1 核，32 位 |
| 速度 | 528MHz |
| 协处理器/DSP | 多媒体；NEON™ SIMD |
| RAM 控制器 | LPDDR2，DDR3，DDR3L |
| 图形加速 | 无 |
| 显示与接口控制器 | LVDS |
| 以太网 | 10/100Mbps（1） |
| SATA | - |
| USB | USB 2.0 + PHY（2） |
| 电压 - I/O | 1.2V，1.35V，1.5V，1.8V，2.5V，2.8V，3.3V |
| 工作温度 | -40°C ~ 105°C（TJ） |
| 安全特性 | ARM TZ，A-HAB，CAAM，CSU，SJC，SNVS |
| 封装/外壳 | 289-LFBGA |
| 供应商器件封装 | 289-MAPBGA（14x14） |
| 附加接口 | CAN，EBI/EMI，I²C，I²S，MMC/SD/SDIO，QSPI，SAI，SPI，SSI，S/PDIF，UART |
| 基本产品编号 | MCIMX6 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 3（168 小时） |
| REACH Status | 非 REACH 产品 |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
How to Buy
| Process | Submit enquiry>Confirm offer>Send order>Complete payment >Delivery |
|---|---|
| Payment | TT, PayPal, Escrow, more please consult our account manager. |
| Delivery period | For in-stock parts, orders are estimated to ship out in 3 days. |
| Shipping option | We provide DHL, FedEx, UPS for international transportation. |
| Shipping tracking | Orders are shipped and we will notify you of the tracking number by email. |
| Warranty | Cytech Systems provide 6 months quality risk guarantee. If you find that the quality of the product does not match the original technical parameters during the use of the product, we will assume responsibility for the quality risk within 6 months. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation |
