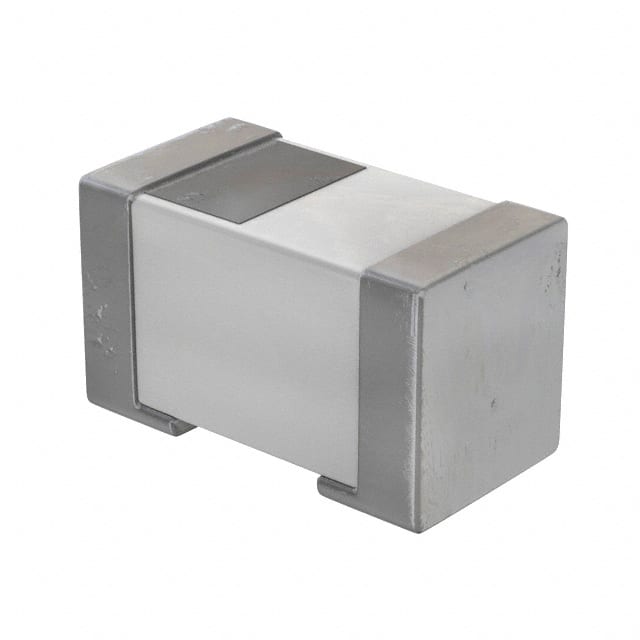

MHQ0603P1N3BT000
MHQ0603P1N3BT000
- In Stock: 0
- Manufacturer: TDK Corporation
- Part Number: MHQ0603P1N3BT000
- Detailed Description: FIXED IND 1.3NH 800MA 100MOHM SM
- Category: 电感器，线圈，扼流圈 | 固定电感器
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$0.5520
10+
$0.5189
100+
$0.4913
1000+
$0.4637
10000+
$0.4361
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | TDK Corporation |
|---|---|
| 系列 | MHQ-P |
| 包装 | 卷带（TR） | 剪切带（CT） |
| 标准包装 | 15000 |
| 产品状态 | 在售 |
| 类型 | 多层 |
| 材料 - 磁芯 | 陶瓷，无磁性 |
| 电感 | 1.3 nH |
| 容差 | ±0.1nH |
| 额定电流（安培） | 800 mA |
| 电流 - 饱和 （Isat） | - |
| 屏蔽 | 无屏蔽 |
| DC 电阻 (DCR) | 100 毫欧最大 |
| 不同频率时 Q 值 | - |
| 频率 - 自谐振 | 10GHz |
| 等级 | - |
| 工作温度 | -55°C ~ 125°C |
| 电感频率 - 测试 | 500 MHz |
| 安装类型 | 表面贴装型 |
| 封装/外壳 | 0201（0603 公制） |
| 供应商器件封装 | 0201（0603 公制） |
| 大小 / 尺寸 | 0.026 长 x 0.014 宽（0.65mm x 0.35mm） |
| 高度 - 安装（最大值） | 0.016（0.40mm） |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | 非 REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
